Providers, OAuth & external data

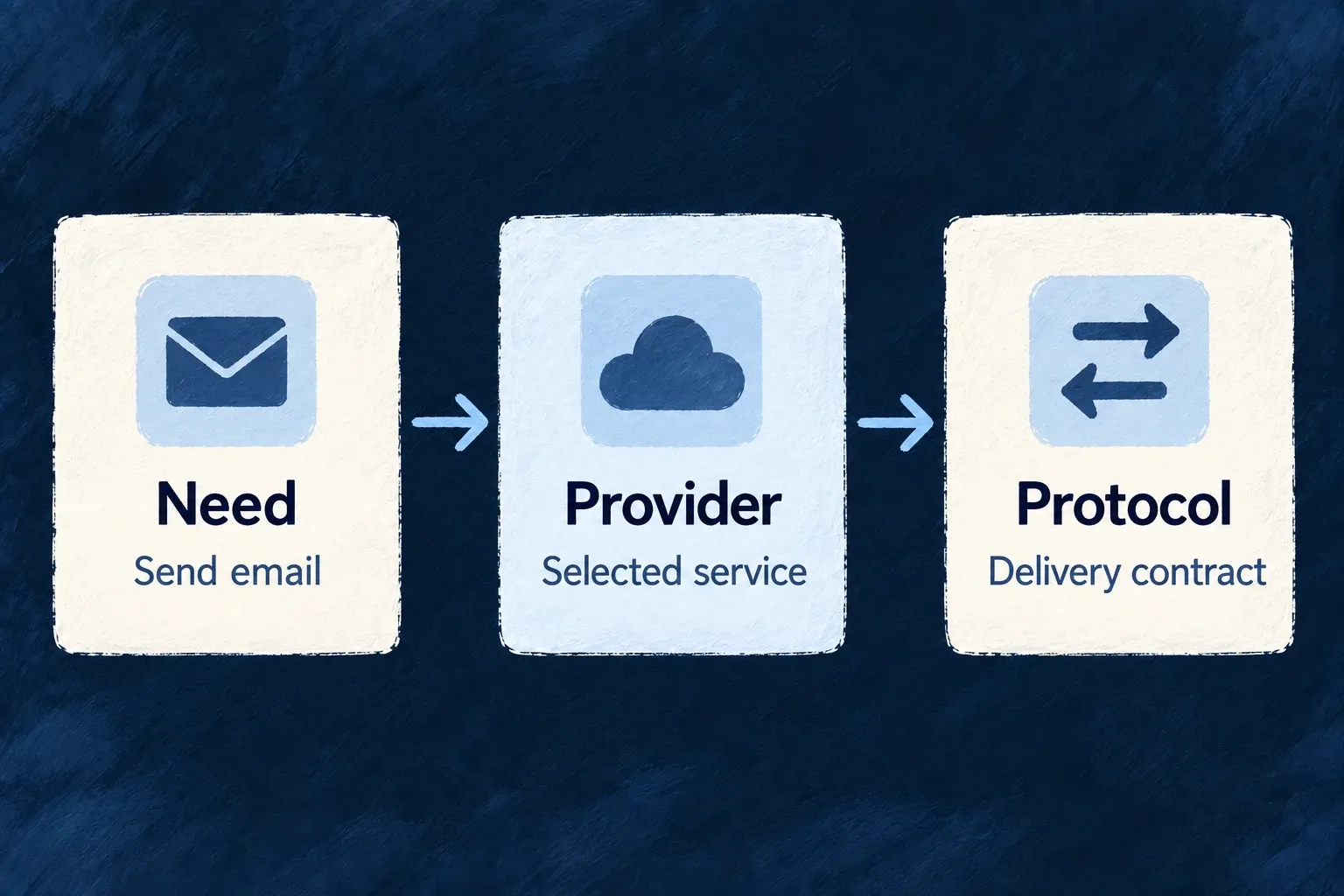

Read the declaration as three separate decisions

Wonder Todos enables EngineCapability.EMAIL_TRANSACTIONAL in engineCapabilities, then declares Resend under providers.scopes.backend.providers. This actual declaration states what that runtime may use:

resend: {
  engineCapabilities: [EngineCapability.EMAIL_TRANSACTIONAL],
  providerCapabilities: ['EMAIL_TRANSACTIONAL'],
  protocols: ['EMAIL_PROVIDER'],
},

The engine capability names the framework need. The provider capability records an ability the provider contributes. The protocol selects its executable connection contract. defineSaaSProviders validates declarations against the discovered catalogue; the backend registry filters them again for its active scope.

Understand where the ability comes from

The provider module owns the corresponding ability declaration. Resend’s backend module includes:

providerCapabilities: [
  BUILTIN_PROVIDER_CAPABILITY.EMAIL_TRANSACTIONAL,
],
secretsContract: {
  apiKey: {
    envVarName: "RESEND_API_KEY",
    required: true,
    description: "Resend API credential for email delivery."
  }
},

The module’s protocol binding then supplies the email implementation. The application supplies the credential through its supported secret configuration and selects the provider for the enabled capability. The shared projection map derives engine capabilities from provider abilities rather than maintaining a second vendor-specific slot list.

Know when a capability selection is the wrong abstraction

An enterprise API provider can therefore declare empty capability lists and still expose its REST protocol. Do not invent a slot merely to make every integration look alike. The capability map now checks that each engine capability is either mapped or explicitly engine-owned; adding an unaccounted capability is a compile-time error.

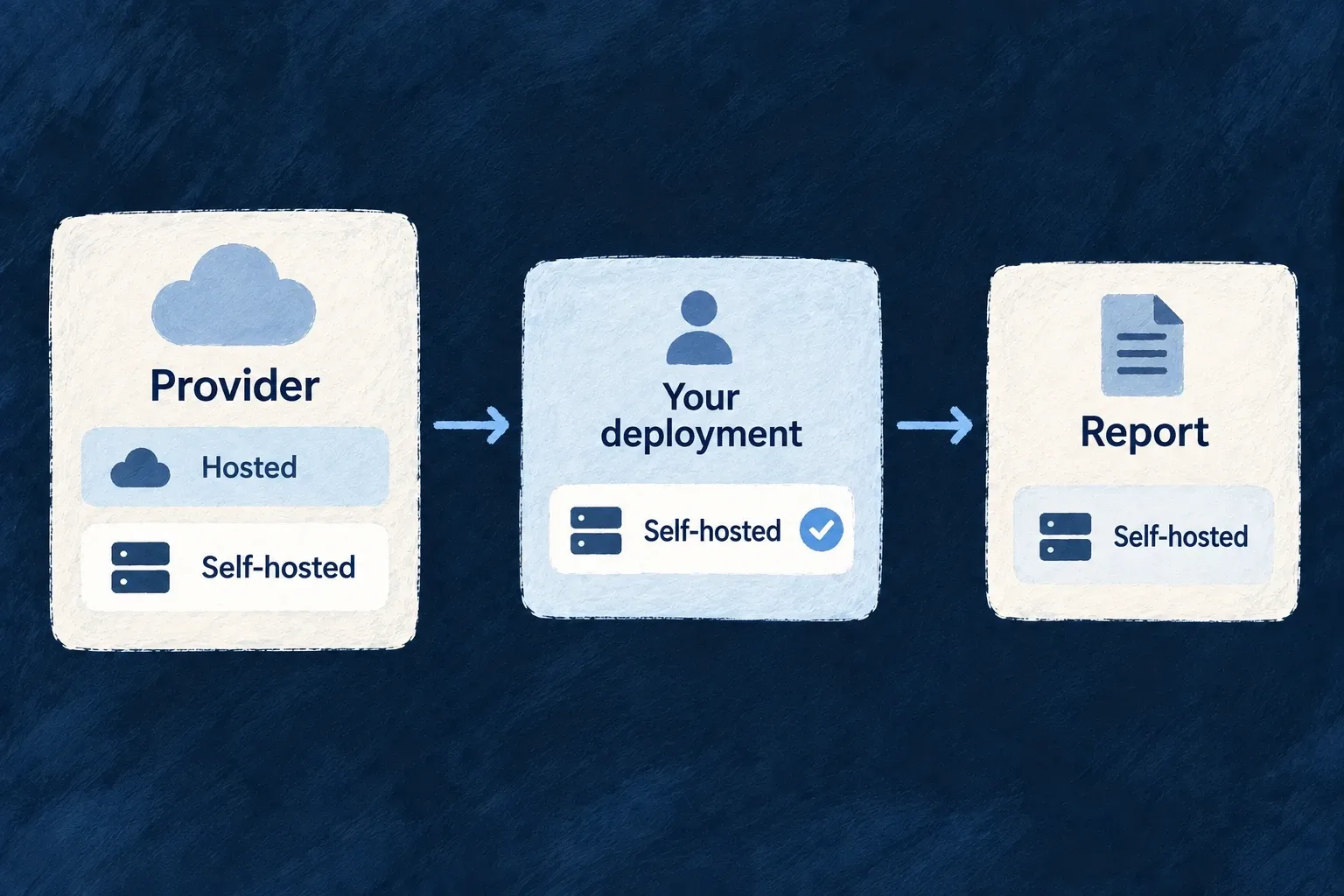

Provider tier and origin are additional declared metadata. They describe the provider’s role and provenance, not whether your application has enabled or configured it. Keep those questions separate when tracing why a provider is available.

Match the authoring protocol to the executable binding

A backend module pairs its declared protocol with a discriminated runtime contract. This selected Resend binding shows the email path and encoding inside that contract; request-builder and response-parser implementations are omitted:

{
  protocol: "EMAIL_PROVIDER",
  runtimeContract: {
    kind: ProviderProtocolRuntimeKind.EMAIL,
    baseUrl: "https://api.resend.com",
    apiKey: {
      secretRef: "RESEND_API_KEY",
      headerName: "Authorization",
      prefix: "Bearer "
    },
    operations: ["sendEmail", "sendBatch"],
    supportedEmailTypes: ["transactional"],
    sendEndpointPath: "/emails",
    payloadEncoding: EmailProviderPayloadEncoding.JSON,
    // buildSendRequest and parseSendResponse complete this binding.
  },
}

This is an explanatory selection from the current module, with compacted arrays. A complete email binding also implements its request builder and response parser. Composition checks that the authoring key and runtime kind agree; a protocol name alone does not install executable behavior.

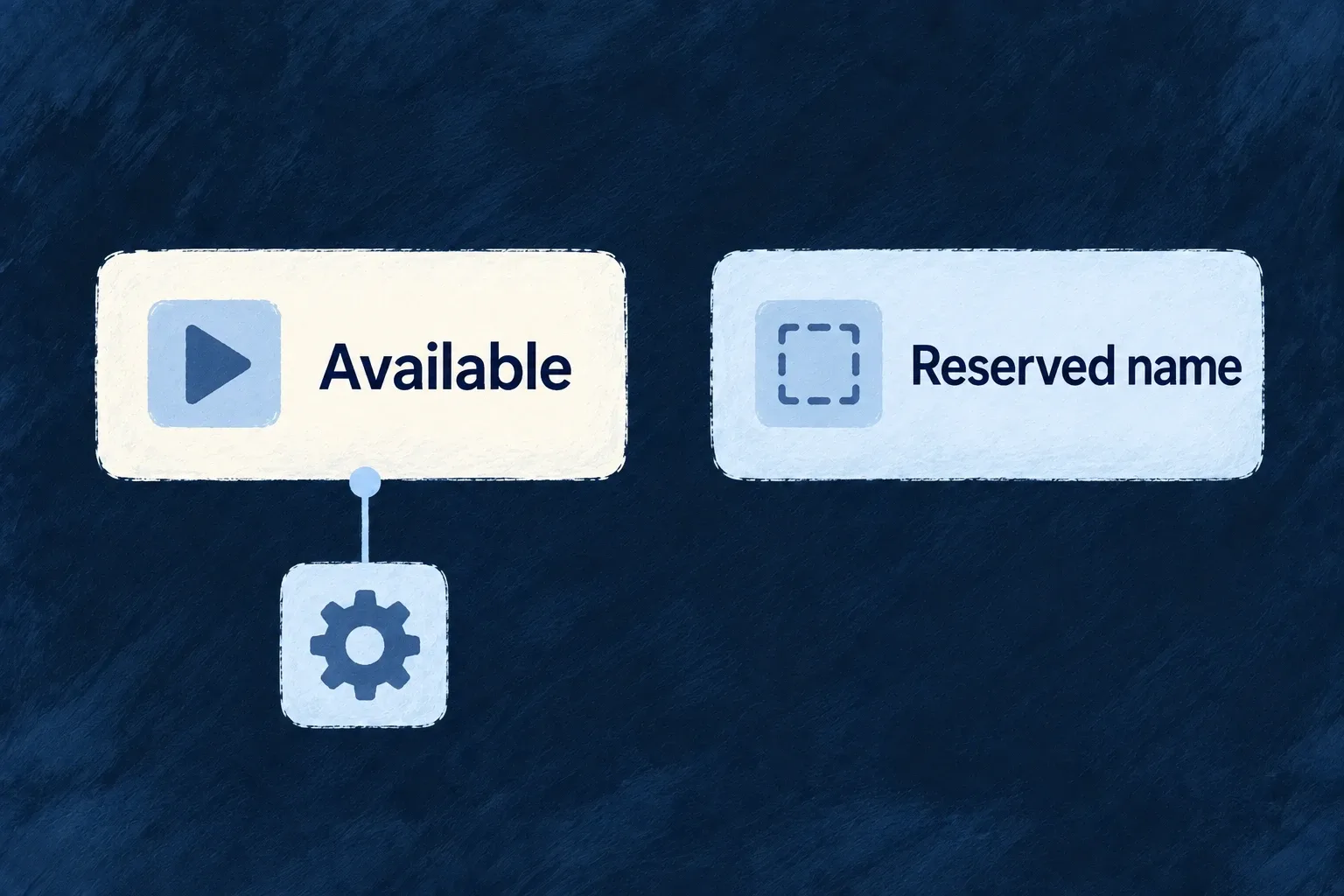

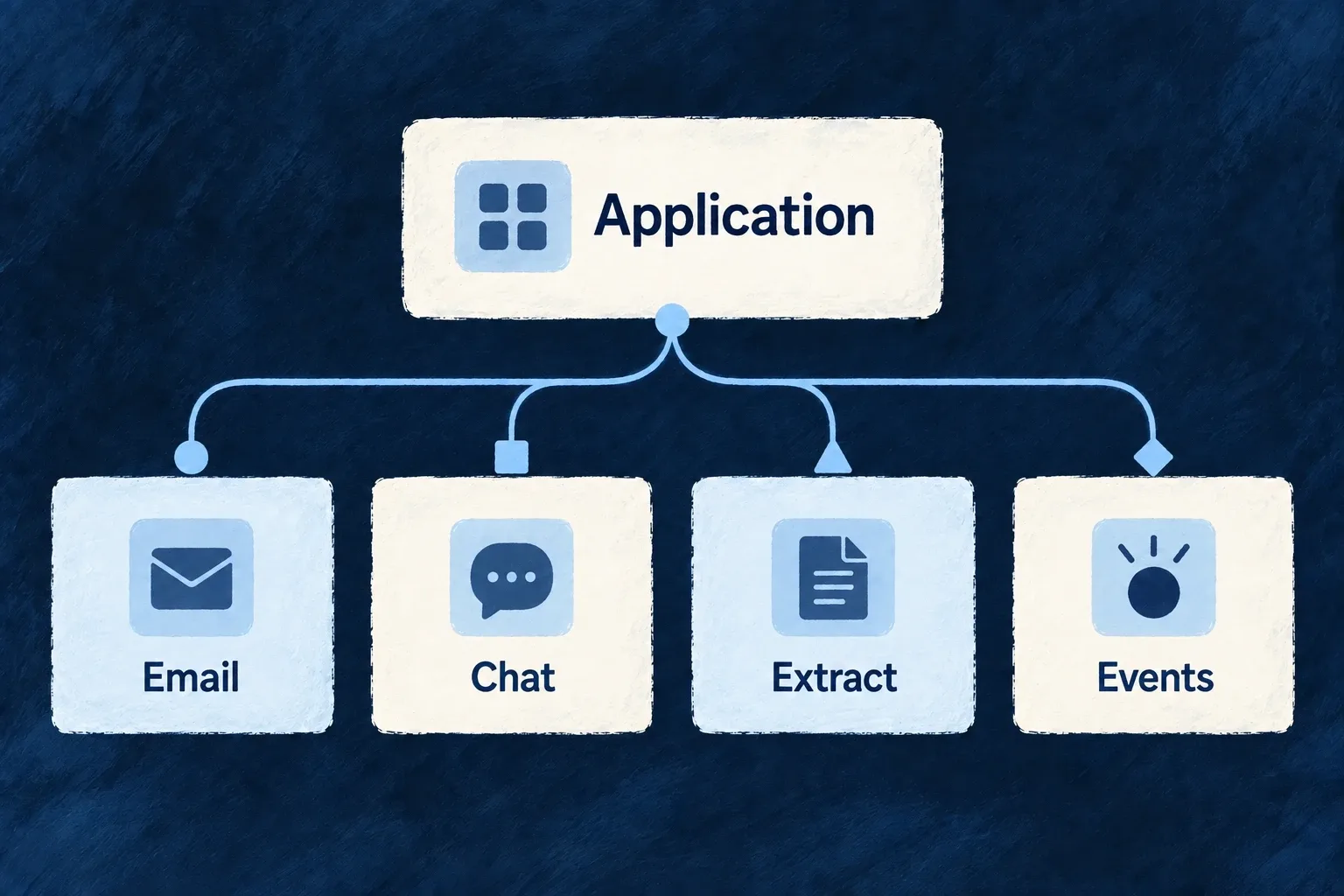

Select a contract that describes the work

ExternalProvider_ExchangeProtocol_Kind owns the protocol vocabulary. Backend runtime kinds are a subset of its values, so dispatch can discriminate the relevant contract without translating between unrelated identifiers.

Application configuration selects the protocol in its provider scope and supplies protocol-specific settings where required. Keep the provider’s runtime module reachable through the generated artifact and its package entrypoint.

Extend the implementation as well as the vocabulary

When adding a vendor for an existing contract, implement the provider-specific details in its module and test the relevant consumer. Naming an additional protocol requires an executable contract and a consumer; a declared identifier is not evidence of supported behavior. Audio and video identifiers remain reserved rather than runnable backend contracts.

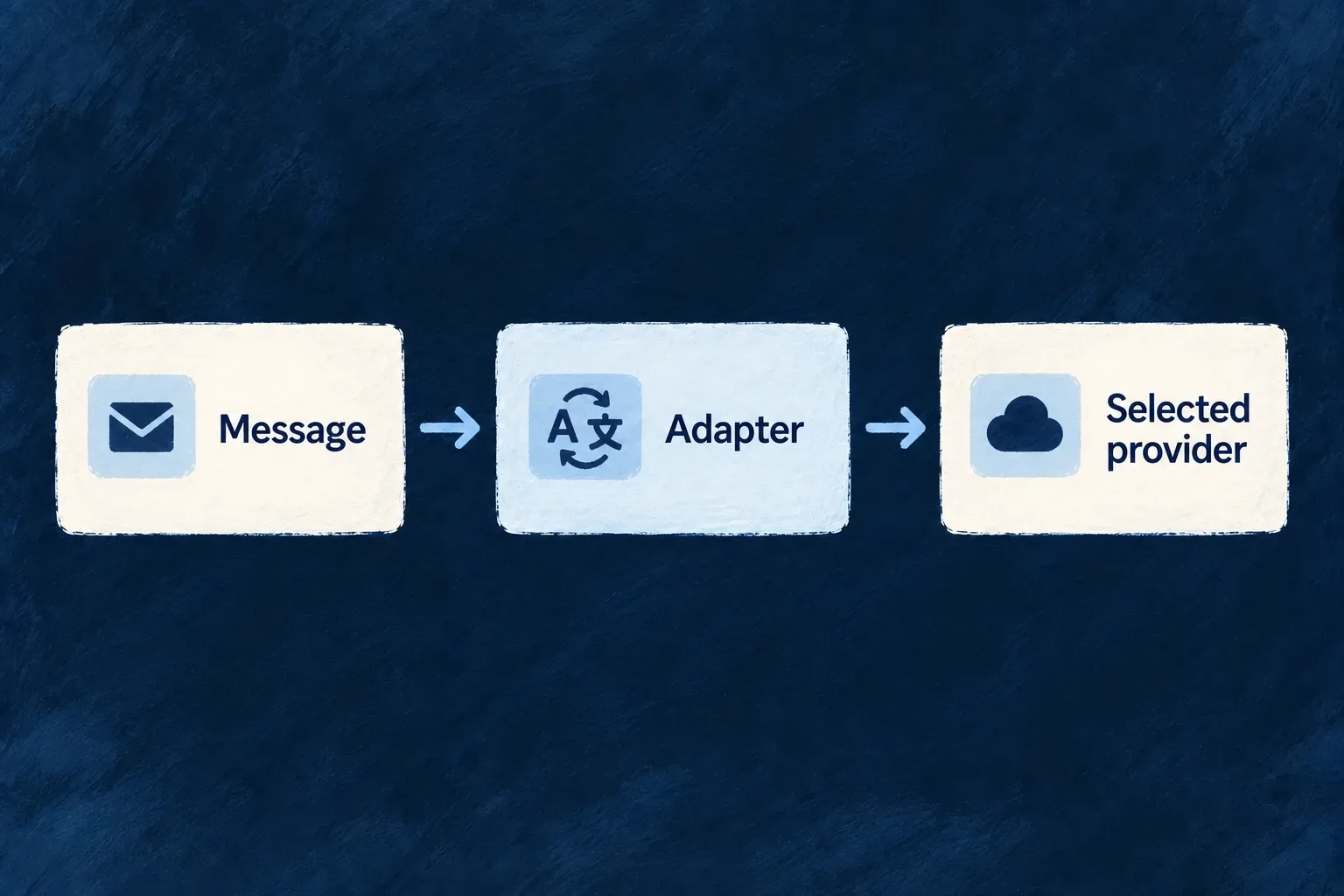

Distinguish the application call from the provider request

The application’s email service starts from a registered template, recipients and context. After rendering, it creates the standard provider request. This illustrative object shows that lower-level contract, not a replacement for the template service:

import type { StandardEmail_SendRequest } from '@wildo-ai/external-connectors-models';

const submission: StandardEmail_SendRequest = {
  submissionId: 'invitation-example-001',
  to: [{ email: 'reader@example.com' }],
  from: { email: 'notifications@example.com', name: 'Example product' },
  subject: 'Your invitation',
  text: 'You have been invited to join the workspace.',
  headers: { 'X-Product-Message': 'invitation' },
};

For real delivery, use a verified sender and an appropriate stable identity for the logical submission. A fixed example identifier must not be reused for unrelated messages. submissionId supports correlation across retries; it does not promise every provider offers exactly-once delivery.

Keep transport and message headers separate

Resend’s request builder maps message fields into its JSON payload and places the submission identity in a transport header. The relevant ending is:

payload: {
  headers: request.headers,
  tags: request.tags?.map((tag) => ({ name: tag, value: tag })),
  scheduled_at: request.scheduledAt,
},
transportHeaders: {
  'Idempotency-Key': request.submissionId,
},

The API header authenticating or identifying the submission is distinct from headers carried inside the email. The engine serializes the builder’s declared payload encoding; callers do not branch on the vendor name to produce a different body.

Interpret acceptance at the provider boundary

The provider response parser translates receipt details into a shared submission classification. Accepted, rejected and acceptance-unknown are different results: a successful submission receipt is not proof that a person received or read the email. The non-delivering preview provider uses its own delivery contract rather than pretending a network send occurred.

Standard email and SMS contracts do not make every optional vendor feature identical. Select a provider appropriate to the needed operation, credentials and message shape. Other integration families, such as billing and models, have their own runtime contracts rather than this message contract.

Declare candidates before choosing the primary

Wonder Todos declares providers under providers.scopes.backend.providers, then adds this selected part of the backend selection map:

[EngineCapability.AI_LLM]: {
  primary: 'anthropic',
  whenUnavailable: ['openai', 'google'],
},
[EngineCapability.EMAIL_TRANSACTIONAL]: {
  primary: 'resend',
  whenUnavailable: [],
},

Each selected provider must be discovered, declared for that runtime and able to serve the enabled capability. Backend, companion, browser services and workers have distinct scopes. A provider being present elsewhere in the application does not make it a candidate for this process.

Read substitutes as resolution order

The current field is whenUnavailable. It orders eligible substitutes after the primary during provider resolution; it does not retry a second vendor after the first vendor’s call fails. The registry filters candidates by declared capability and runtime scope, places eligible primary/substitute references first, then retains the other eligible references.

The select-one consumer takes the first resolved provider. Do not use a selection list as a claim of delivery redundancy. Application-specific retry or recovery must account for the actual operation and whether a failed call may already have been accepted.

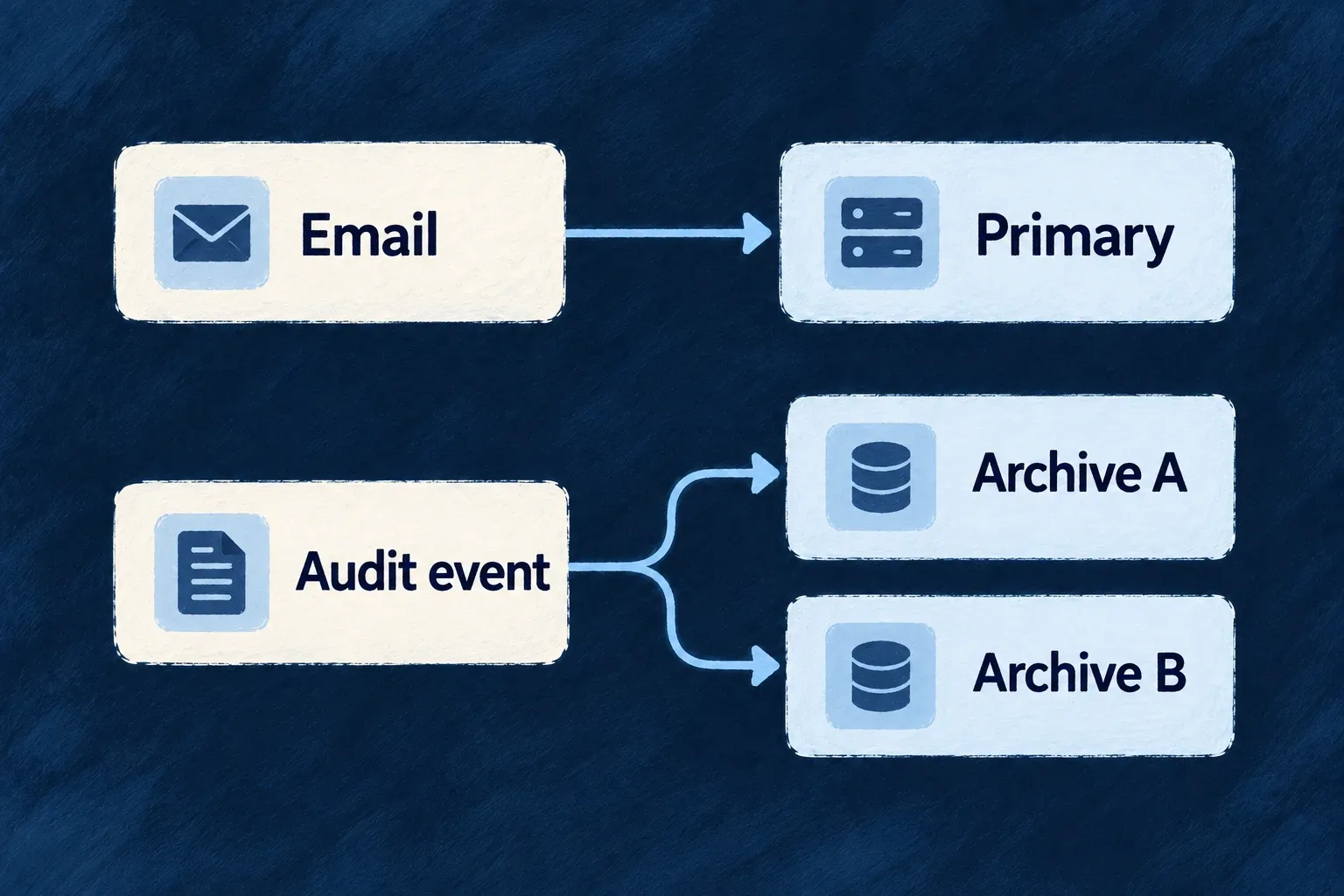

Use fan-out for additive destinations

The capability resolution map assigns COMPLIANCE_AUDIT_TRAIL to FAN_OUT. The composite audit sink asks the registry for the resolved set and sends to the configured destinations. The application does not author a primary for this capability.

The mapping is exhaustive over engine capabilities, so adding one requires choosing its resolution mode. Inspect the runtime’s resolved selection when validating setup; declared names alone do not establish that a remote service is reachable or that a send succeeded.

Observe and recover each destination independently

Selected from CompositeAuditLogSink.recordAuditEvent; sink resolution and the empty-set return are omitted. Each sink write has its own catch, so one rejected write does not cancel the other attempts.

await Promise.all(
  sinks.map(async ({ ref, sink }) => {
    try {
      await sink.recordAuditEvent(event);
    } catch (err) {
      this.metricsService.recordAuditSinkFailure({ providerRef: ref });
      console.error('[audit] provider sink failed (non-fatal)', {
        providerRef: ref,
        ...projectCaughtErrorLogFields(err),
      });
    }
  }),
);

The failure metric identifies the destination that needs attention. A returned fan-out call is not an acknowledgment from every remote destination. This boundary catches individual sink-write failures; it does not make every surrounding operation infallible.

Recovery depends on the sink contract. The completeness reconciler replays database events for sinks that implement both checkpoint methods; a fire-and-forget SIEM webhook is not in that checkpointed set. Configure monitoring and recovery for the actual destination rather than assuming fan-out provides one universal retry or exactly-once guarantee.

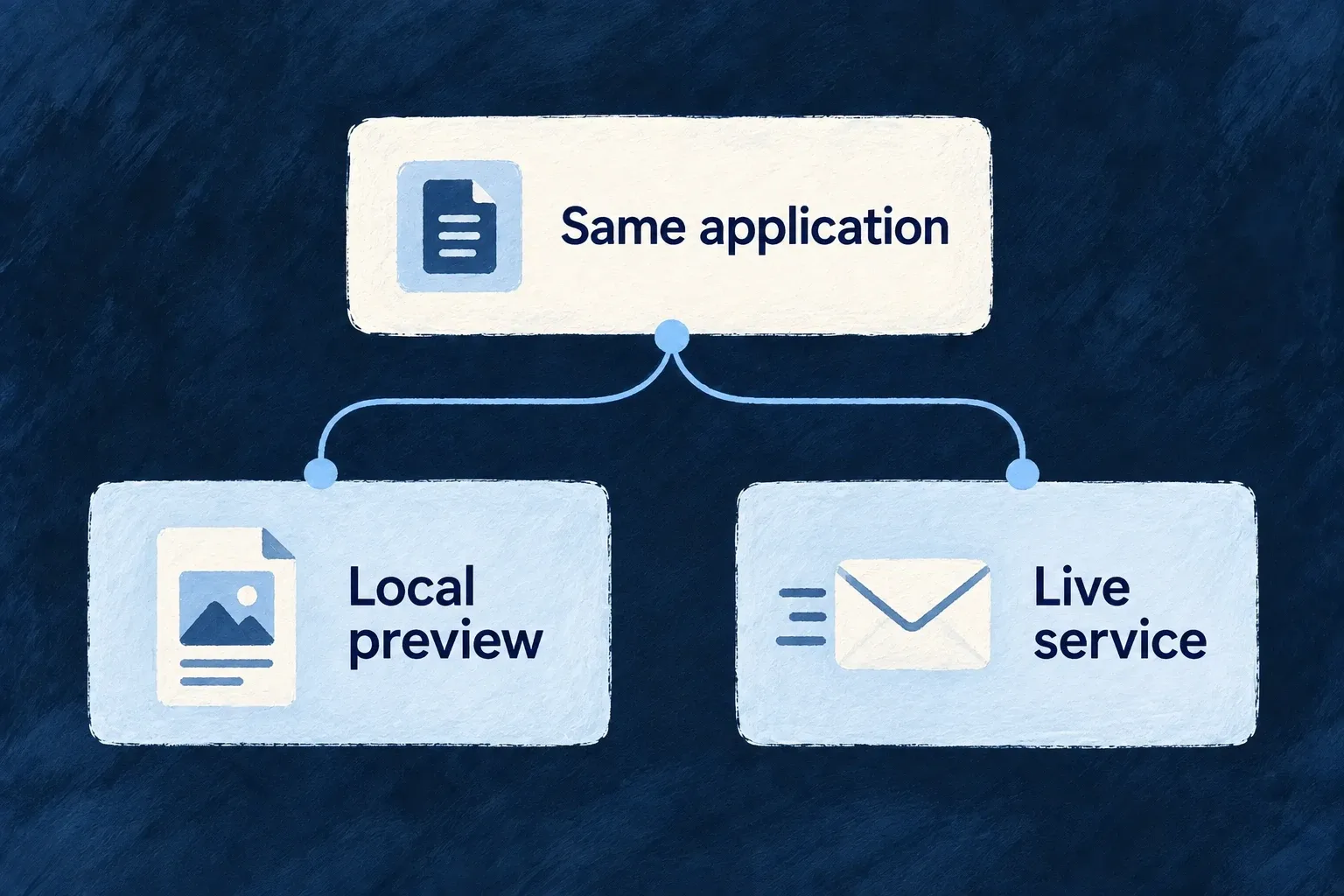

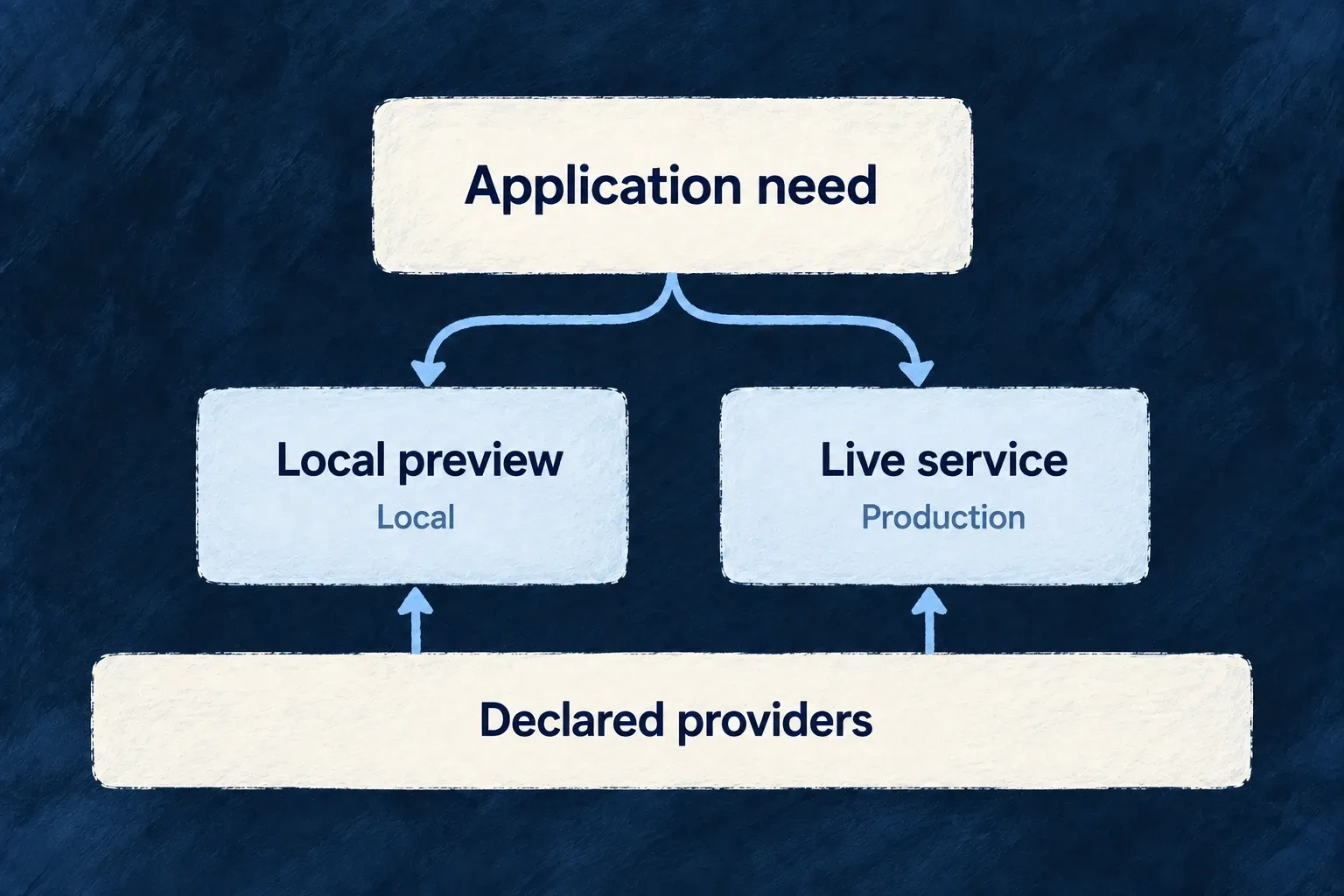

Declare the alternative in the application first

An override selects from the providers admitted by the application’s runtime scope. Wonder Todos declares email-preview alongside Resend in its backend providers:

'email-preview': {
  engineCapabilities: [EngineCapability.EMAIL_TRANSACTIONAL],
  providerCapabilities: ['EMAIL_TRANSACTIONAL'],
  protocols: ['EMAIL_PROVIDER'],
},

The application’s backend selection keeps resend primary. Its local infrastructure file, infrastructure/local/wildo.infra.local.config.ts, then contains:

providerSelection: {
  [EngineCapability.EMAIL_TRANSACTIONAL]: {
    primary: 'email-preview',
  },
},

These are actual configuration selections. The preview provider has a non-network delivery contract; it does not become a sending provider merely because it serves the transactional email capability.

Follow the environment choice into the process

The environment variable builder serializes the selection into WILDO_PROVIDER_SELECTION_OVERRIDES. The backend registry reads and caches that value, applying it ahead of the application selection for select-one capabilities. Use the normal configuration/environment synchronization and process startup path so the running process receives the intended environment.

Changing the infrastructure source is not a live mutation of an already initialized registry. Inspect the resolved runtime selection after restarting the relevant process with its updated configuration.

Keep the override’s authority narrow

The override cannot install a new provider or grant a provider to a scope where it was not declared. Resolution still filters eligible candidates, then applies selection ordering. Fan-out capabilities retain their additive destination set rather than treating an environment primary as a destination filter.

Malformed override data is ignored by the runtime’s defensive parser, so validate the actual selection rather than assuming a malformed local value guarantees non-delivery. whenUnavailable has the same selection-time meaning here as in application configuration; it is not retry-on-send-failure.

For a local non-delivery expectation, verify the intended preview provider is the resolved primary and observe the preview result before using real recipient addresses.

Give each runtime its own module

The Stripe frontend module records identity, capabilities and public configuration. This selected portion is browser-facing:

providerCapabilities: [BUILTIN_PROVIDER_CAPABILITY.BILLING],
protocols: [BUILTIN_PROVIDER_PROTOCOL.BILLING_PROVIDER],
publicConfig: {
  billingProviderRef: 'stripe',
},

The backend module belongs to @wildo-ai/external-connectors-private/backend and exposes server runtime contracts and a secrets contract. Secret declarations name the required values; the application supplies those values through the server’s supported credential path. Do not copy secret values into publicConfig or a frontend contribution.

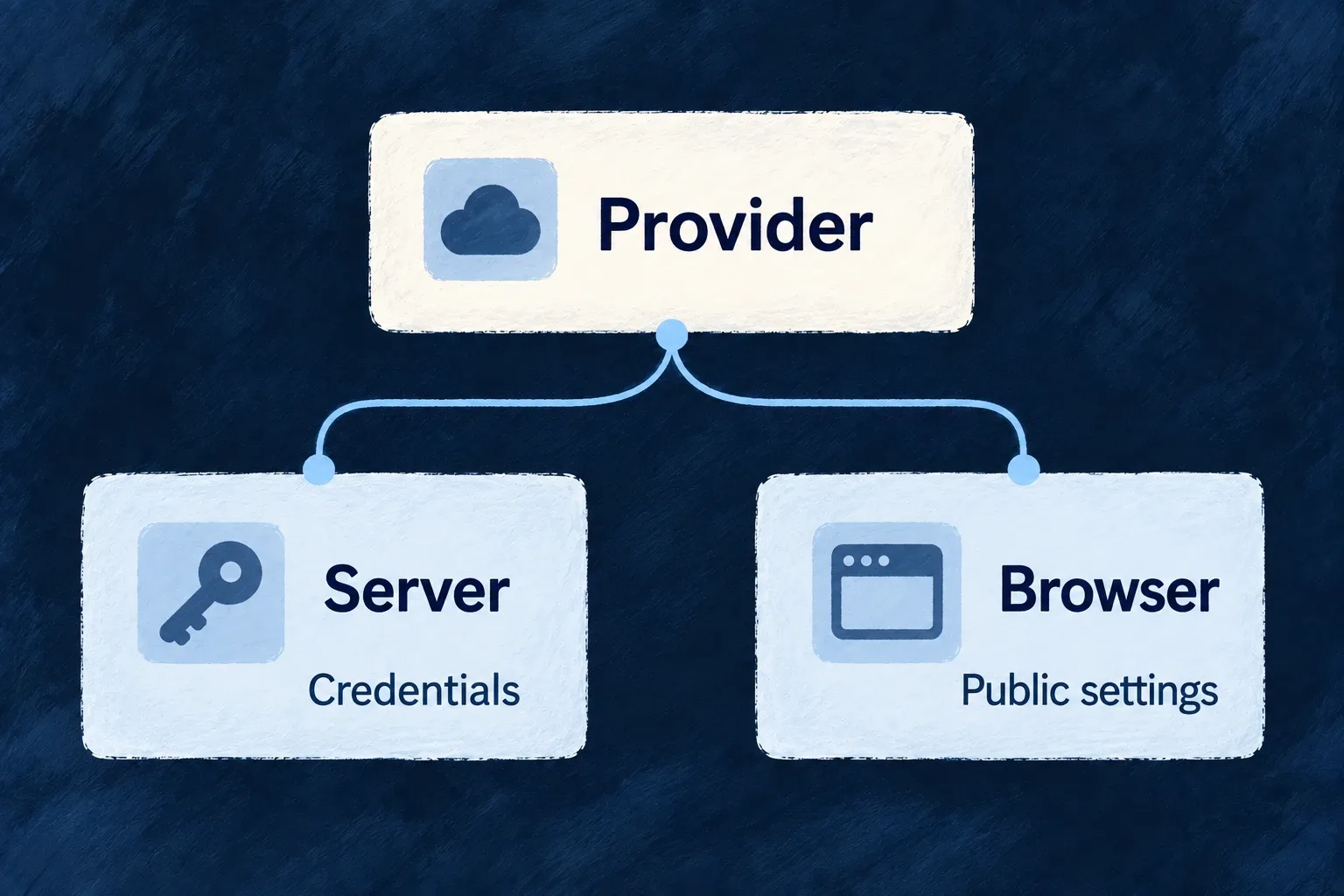

Separate browser data from executable code

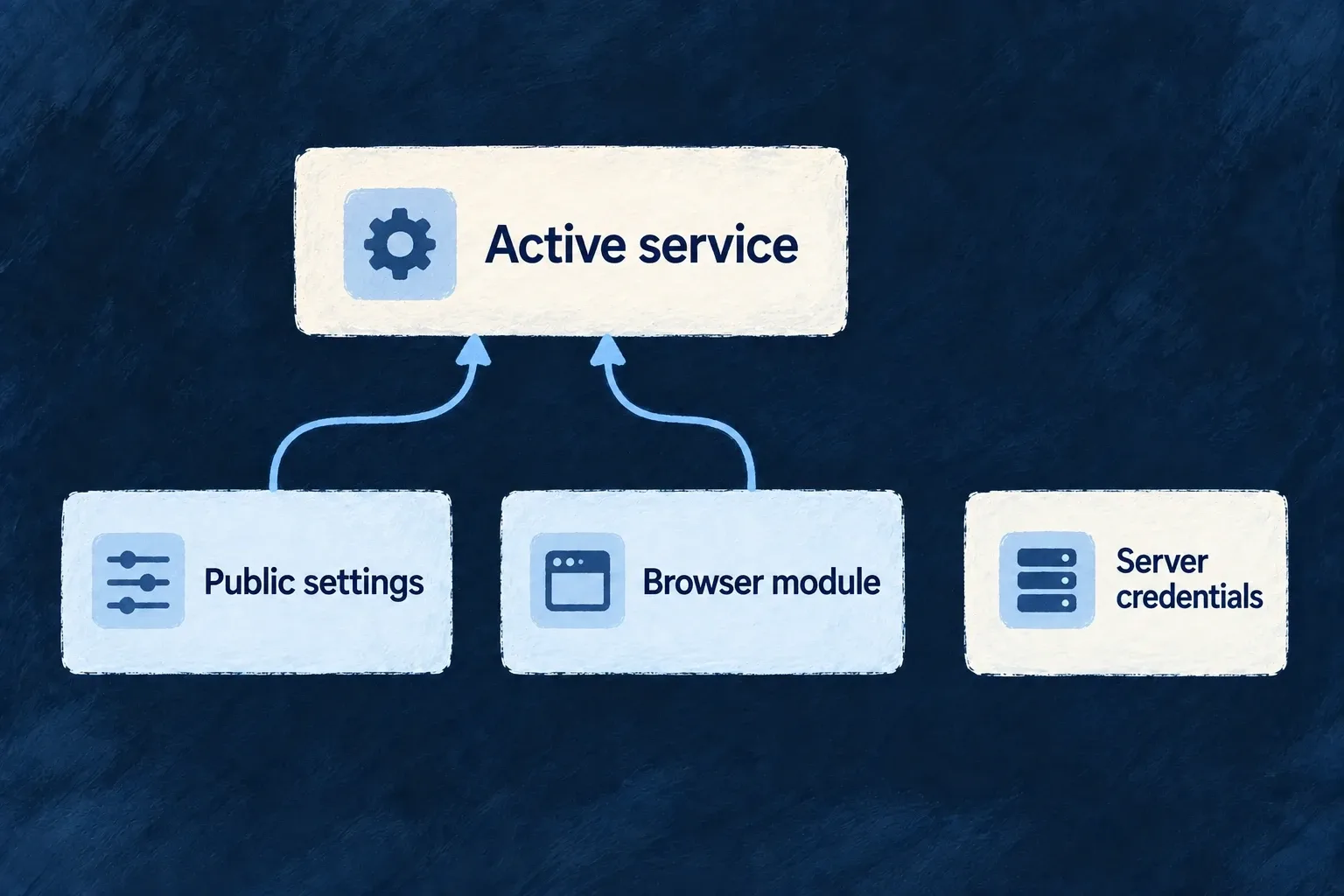

Browser integration has two inputs. The application configuration or generated JSON supplies enabled provider data for the service and environment. An explicitly supplied frontend module map supplies executable code from the provider package’s browser facet.

hydrateFrontendProviderModules joins those inputs by provider reference. Enabled data without a matching module retains its identity and public configuration, but has no executable SDK and raises a missing-code diagnostic. Bundled code without enabled data remains inactive. Descriptor checks identify stale generated declarations rather than silently treating mismatched data as the current module.

Preserve the boundary in application code

Supply the module map through the host’s frontend registration option and import each module from its deliberate browser entrypoint. For the SaaS application host, startApplicationService.initializeApplication accepts frontendProviderModules; startup passes that map into registry hydration alongside the enabled provider data. Configuration synchronization supplies provider data and backend runtime artifacts, but currently does not emit the frontend code map. Wire that map explicitly for browser behavior; rerunning synchronization alone does not supply an SDK loader. Do not import the server package into a React component to obtain metadata. Shared browser-safe metadata exists for that purpose.

Package separation and the public package’s bundle-isolation tests establish an intended boundary, not a magic guarantee that an application can never write an unsafe import. Review custom provider dependencies and the actual browser artifact. Public configuration must remain public, and the server must still enforce access to every credential-backed operation.

See browser activation for the connected contribution and startup example: public settings enter through the companion contribution, while the browser imports its module through a public frontend entrypoint and passes it to its host.

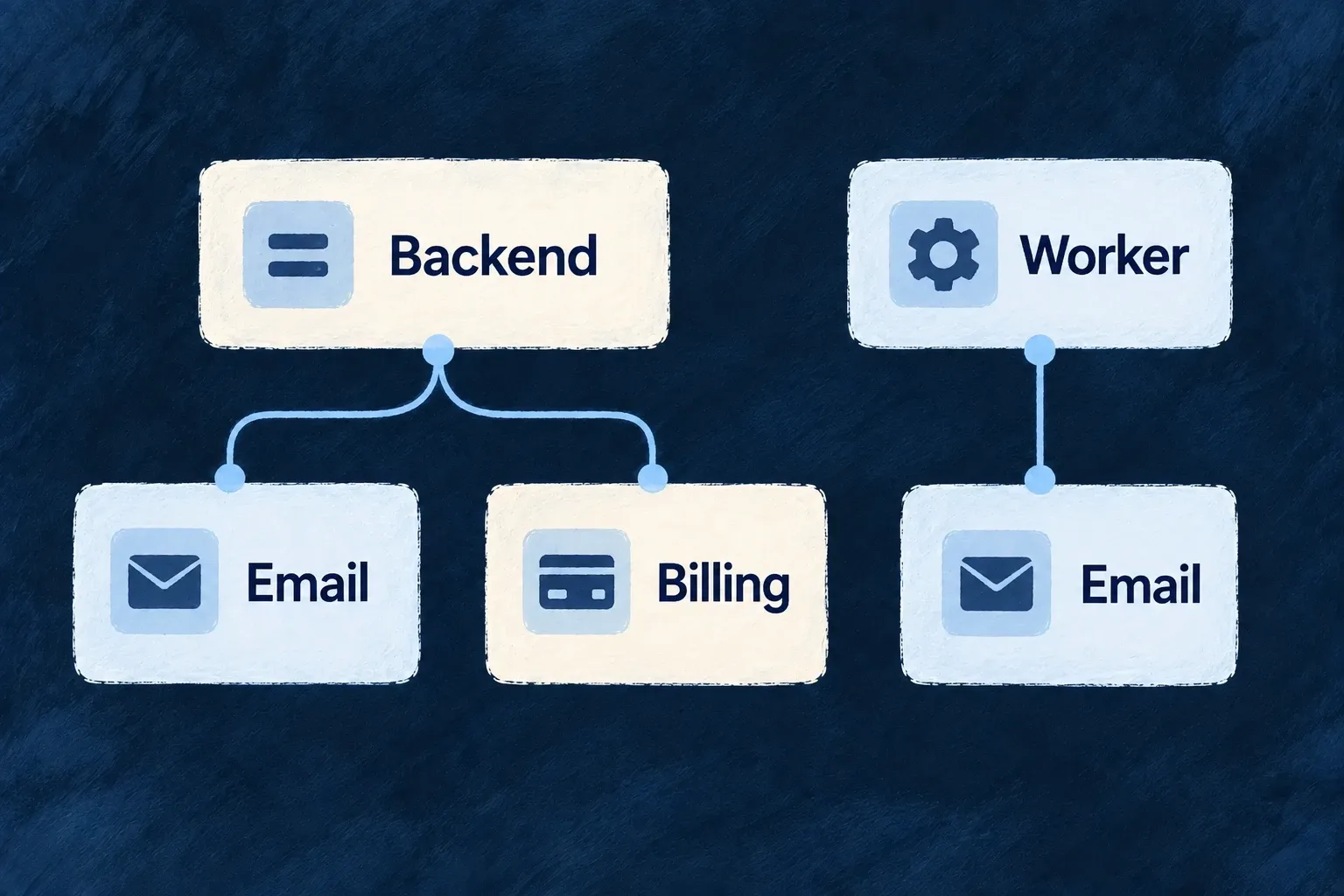

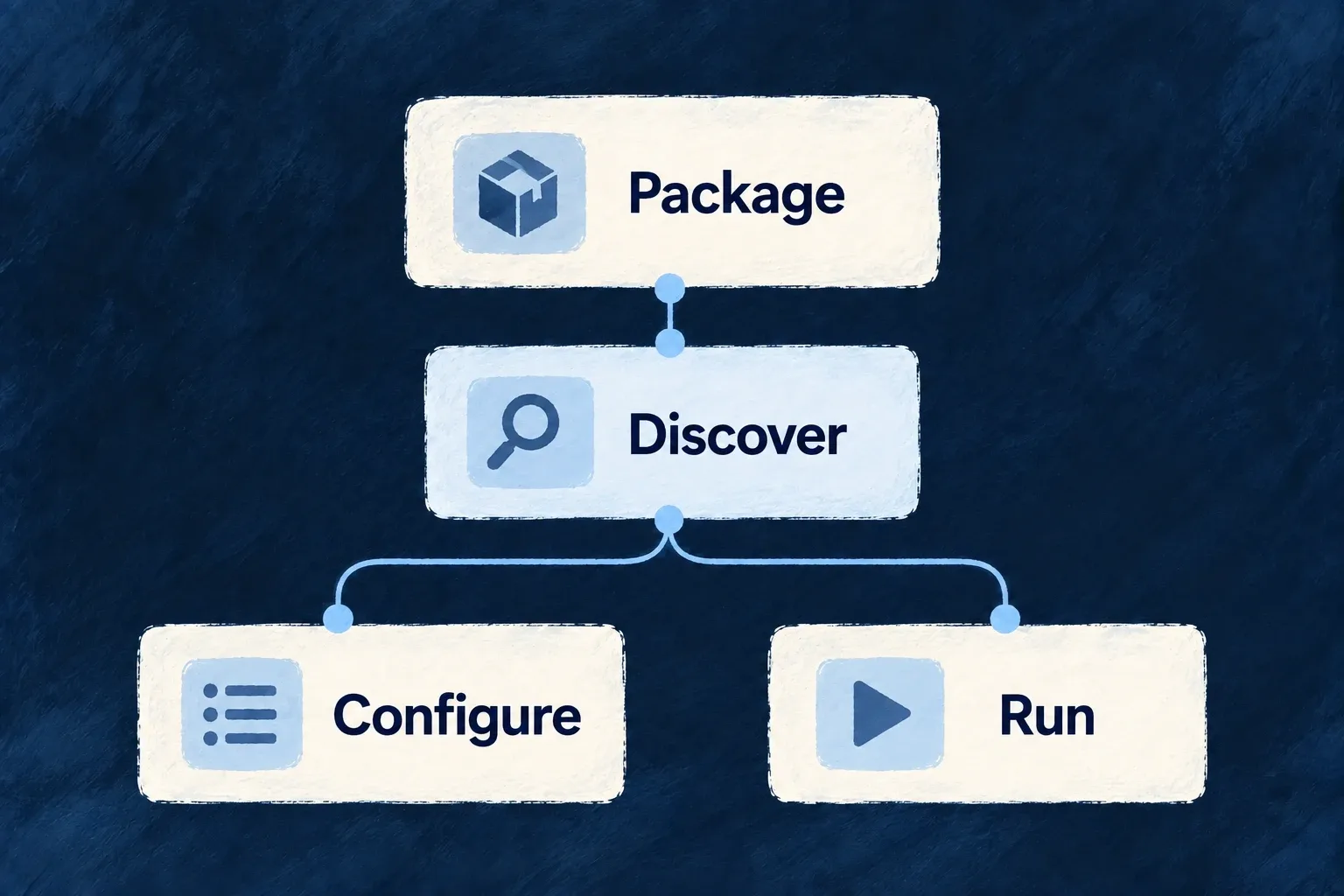

Generate the catalogue, then consume its type

From the SaaS application root, run the configuration workflow:

wildo config sync

The generated .wildo-saas/generated/provider-catalog.types.ts exports WildoDiscoveredProviderCatalog. Wonder Todos imports that type and passes it to defineSaaSProviders. This reduced configuration shows the authoring connection:

import { defineSaaSProviders } from '@wildo-ai/platform-config-lib';
import type { WildoDiscoveredProviderCatalog } from './.wildo-saas/generated/provider-catalog.types';

const providers = defineSaaSProviders<WildoDiscoveredProviderCatalog>({
  scopes: {
    backend: {
      providers: {
        resend: {
          engineCapabilities: [EngineCapability.EMAIL_TRANSACTIONAL],
          providerCapabilities: ['EMAIL_TRANSACTIONAL'],
          protocols: ['EMAIL_PROVIDER'],
        },
      },
      selection: { [EngineCapability.EMAIL_TRANSACTIONAL]: { primary: 'resend' } },
    },
  },
});

This example assumes EngineCapability is imported from @wildo-ai/saas-models and transactional email is enabled in the enclosing SaaS configuration. Place the resulting declaration in that configuration’s providers field. The type import does not pull a provider SDK into the configuration module.

Separate editor checking from runtime validation

defineSaaSProviders<WildoDiscoveredProviderCatalog> checks provider references and each provider’s capability/protocol values against the generated catalogue in TypeScript. That catalogue is a type import: it is erased at runtime. The helper then parses the general provider configuration shape with Zod; it does not repeat the catalogue-specific type check using a hidden runtime catalogue.

Keep both checks: typecheck the authored configuration after synchronization, then verify the runtime has loaded the declared provider and can resolve its access. Valid configuration syntax does not supply credentials or prove that an account may perform an operation.

Make the provider discoverable at its owner

Discovery follows the application’s admitted service, library and provider-package contribution contracts. Built-in engine providers are discovered through their package’s companion export; application scopes choose their runtime reach. An application-owned provider supplies a contribution from its own package, including its module entrypoint and supported runtime targets.

Do not add a row directly to the generated catalogue. It would disappear on the next synchronization and would not create the implementation or runtime contribution it claims to describe.

Verify both authoring and execution artifacts

The catalogue is a generated authoring aid, not evidence that credentials are installed or a vendor request has succeeded. Rerun synchronization after contribution changes and retain the runtime’s validation rather than treating editor completion as deployment proof. Browser code has a separate prerequisite: supply the frontend module map through the host registration path, such as startApplicationService.initializeApplication({ frontendProviderModules, ... }) for the SaaS app. The current synchronization workflow does not generate that frontend code map.

Wonder CRM names its transactional email provider inside providers.scopes.backend.providers:

Selected from wildo.saas.config.ts; surrounding declarations and imports are omitted.

resend: {
  engineCapabilities: [EngineCapability.EMAIL_TRANSACTIONAL],
  providerCapabilities: ['EMAIL_TRANSACTIONAL'],
  protocols: ['EMAIL_PROVIDER'],
},

This is a selected configuration entry. The provider’s capability and protocol declarations must agree with the module. The application also enables and selects the relevant engine capability where that service uses selection, supplies credentials, and runs wildo config sync to produce runtime artifacts.

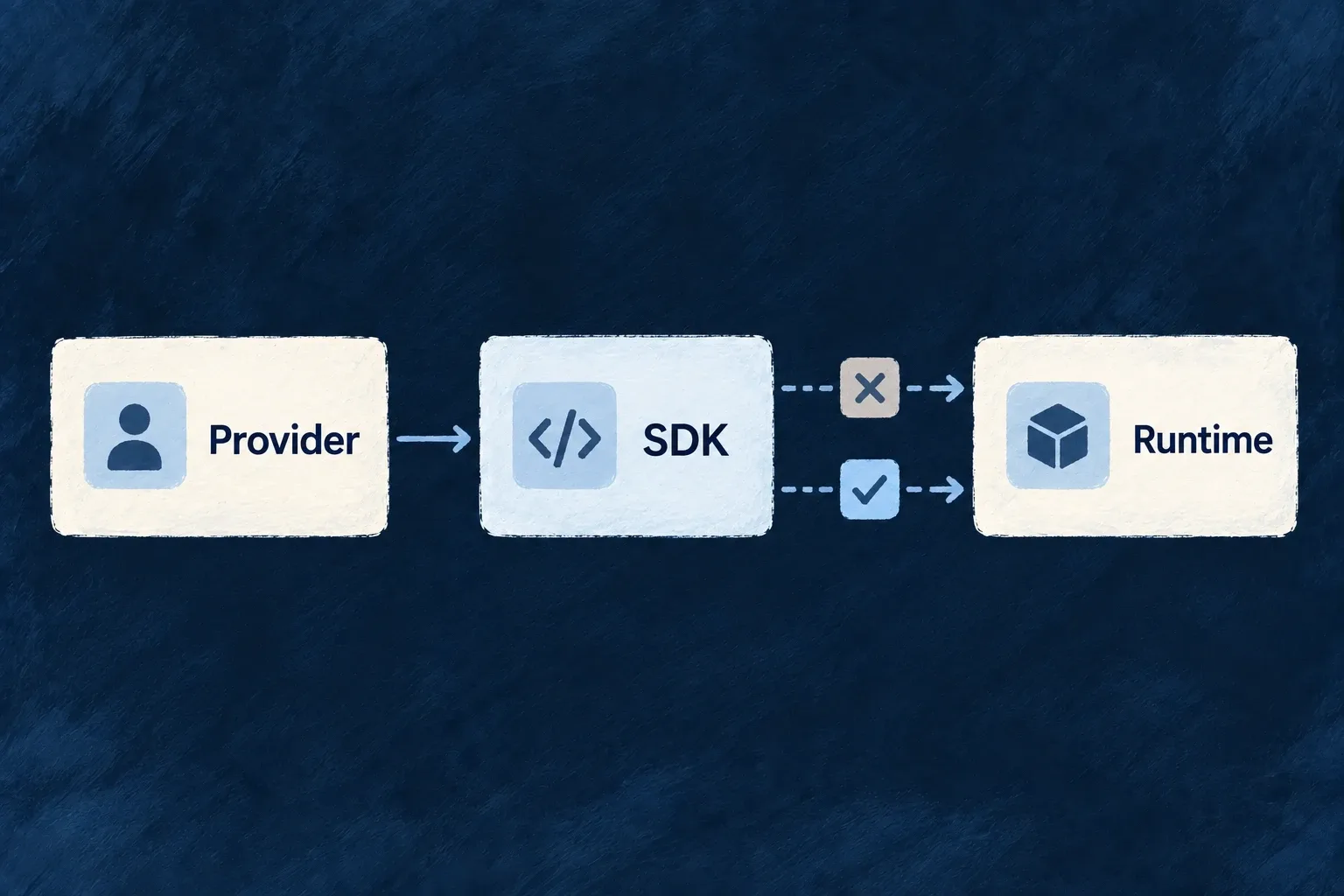

An engine-shipped provider needs no separate vendor package. A packaged provider must be installed in the runtime owner and expose the discovery/runtime entrypoints. The generated catalogue uses a vendor subpath such as @wildo-ai/providers/slack; it does not provide a root import of every vendor.

Load only the declared modules

Engine backend loaders map provider references to dynamic imports. Runtime composition loads the chosen set and checks protocol-key/runtime-kind agreement. Capabilities that fill an engine slot participate in its resolver; a catalogue REST provider can instead be called explicitly by reference without claiming an engine capability.

Adding a vendor to a configuration is not a successful vendor exchange. Verify the required operation and account permissions in the target environment. Where an alternative implements the same engine contract it can be selected; a vendor-specific API remains its own contract and may require application changes.

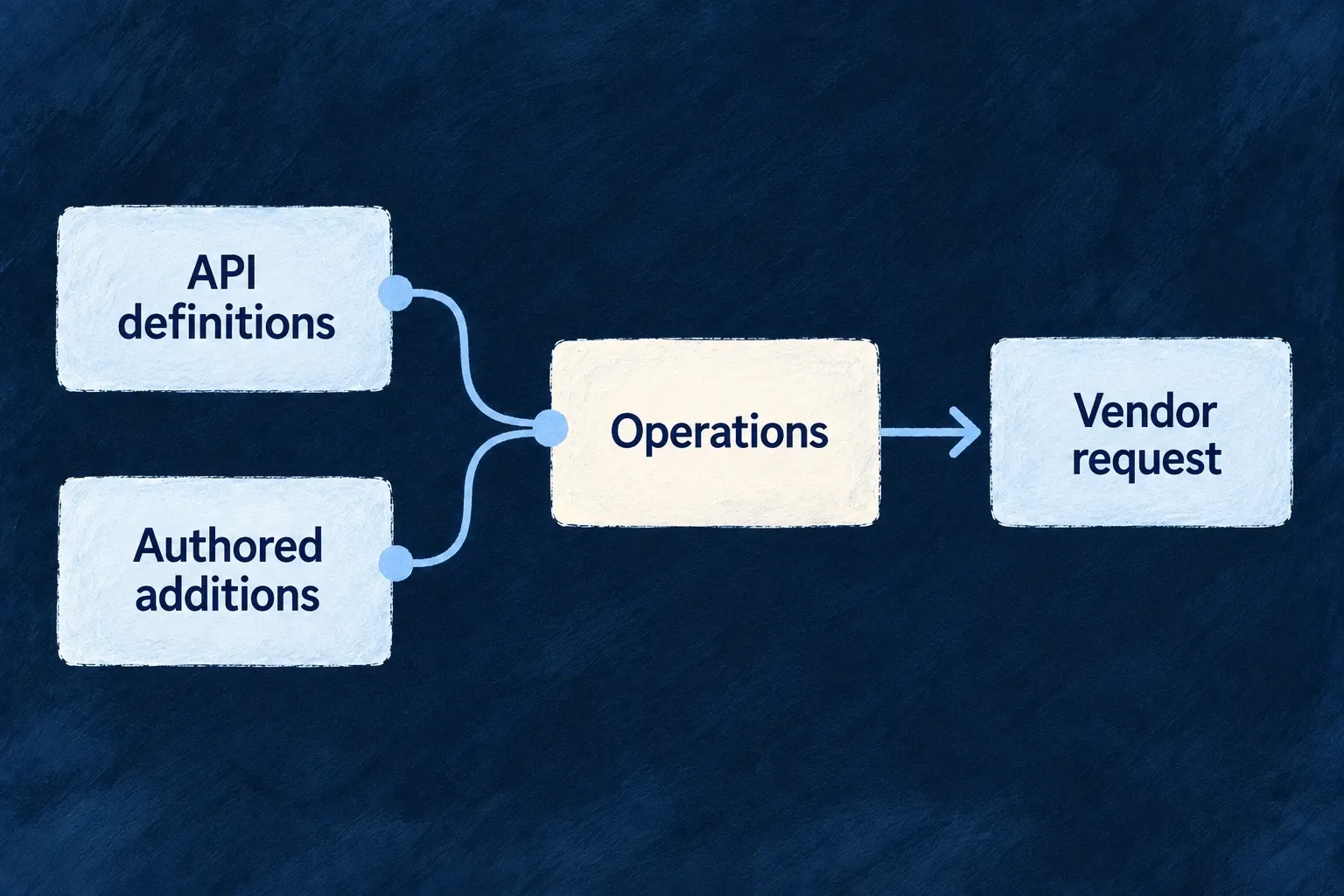

For a vendor-specific action, the Slack application example connects this declaration to executor.execute: it supplies the current operation context, names the account target, validates the vendor reply and retains the resulting message reference.

Frontend providers travel through two channels. Served entries contain identity, public configuration and descriptors; an explicit module map supplies the actual module functions. hydrateFrontendProviderModules joins them by provider identity. Data without matching code is diagnosed; code for an unselected provider stays inactive.

The application declares a provider on the intended frontend service and supplies its public configuration. It must also supply the browser module map to startup: wildo config sync currently synchronizes provider data but does not generate that frontend code map. A browser SDK must be installed where its module expects the optional peer. Selecting a provider does not supply a real account configuration.

Supply public data and browser code at their separate homes

For a SaaS app using Sentry, select sentry for its frontend service with FRONTEND_ERROR_MONITORING and FRONTEND_SDK. Install the module’s optional @sentry/browser peer in that frontend package. Configure the public DSN through the application’s provider configuration, separately from the provider selection block:

providerConfigurations: {
  sentry: {
    [ExternalProvider_ExchangeProtocol_Kind.FRONTEND_SDK]: {
      dsn: publicSentryDsn,
    },
  },
},

Import ExternalProvider_ExchangeProtocol_Kind from @wildo-ai/external-connectors-models; publicSentryDsn is the actual public DSN supplied for this deployment. Synchronization overlays this setting onto the contribution’s public configuration while retaining its SDK and CSP descriptors. It rejects keys outside a declared public-key contract and keys identified as secrets by the same provider’s server contributions.

This produces the served data. The browser startup separately needs executable code; the following uses the declared public app entrypoint, not a deep import of an engine file:

import { EngineFrontendAppProviderRegistryFragment } from '@wildo-ai/external-connectors-public/app';
import { startApplicationService } from '@wildo-ai/saas-frontend-lib';

const sentryModule = EngineFrontendAppProviderRegistryFragment.modules.get('sentry');
if (!sentryModule) throw new Error('The browser bundle has no Sentry app module');

await startApplicationService.initializeApplication({
  ...applicationStartupOptions,
  frontendProviderModules: {
    ...applicationStartupOptions.frontendProviderModules,
    sentry: sentryModule,
  },
});

applicationStartupOptions stands for the application’s existing startup arguments; preserve its other provider modules. Hydration joins this code with the served Sentry entry, and activation reads the DSN. A website uses its website facet and bridge registration instead of startApplicationService.initializeApplication; the app module above must not be substituted for that surface. See runtime separation.

Derive the network policy from the same setting

The Sentry website module declares where to find the connection origin and how to activate its SDK:

Selected from sentry.frontend-website.module.ts; surrounding declarations and imports are omitted.

csp: {
  derivedOrigins: [
    { publicConfigKey: 'dsn', bucket: ProviderFrontendCspOriginBucket.CONNECT },
  ],
},
sdk: {
  descriptor: { packageName: '@sentry/browser' },
  async activate({ providerRef, publicConfig }) {
    const dsn = publicConfig.dsn;
    if (typeof dsn !== 'string' || dsn.length === 0) {
      throw new Error(
        `Provider "${providerRef}" needs a Sentry DSN in its publicConfig.dsn. Without one the SDK starts `
        + 'and reports nothing, which is indistinguishable from a healthy site. Supply it by mapping this '
        + "provider's contribution in the application's own provider-contributions.",
      );
    }

    // DYNAMIC on purpose: `@sentry/browser` is a declared OPTIONAL peer of
    // this package, so it becomes its own chunk and only a surface that turns
    // Sentry on pays for it. A static import would land it in every page that
    // touches this closure and break outright wherever it is not installed.
    const Sentry = await import('@sentry/browser');
    const client = Sentry.init({ dsn });

    return {
      handle: client,
      deactivate: async () => {
        await client?.close();
      },
    };
  },
},

This activation validates a nonempty DSN, dynamically imports the SDK and returns a handle plus deactivation callback. The DSN here is public client configuration, not a backend API secret. Its origin is derived rather than hardcoded into a separate application list.

Hydration compares descriptors and CSP declarations so stale generated code/configuration does not silently masquerade as agreement. Activation failures name the provider and are isolated from other provider activations.

Use browser-safe entrypoints for the appropriate surface. The backend facet may share the vendor identity, but its secret-aware module does not belong in the browser bundle. Public configuration is visible to visitors by design; never use it to transport tenant or deployment credentials.

The package exposes vendor subpaths, for example @wildo-ai/providers/slack, rather than a root barrel. Installing the package brings its definitions onto disk; importing a vendor does not eagerly evaluate the whole catalogue. The generated module records its source catalogue and revision.

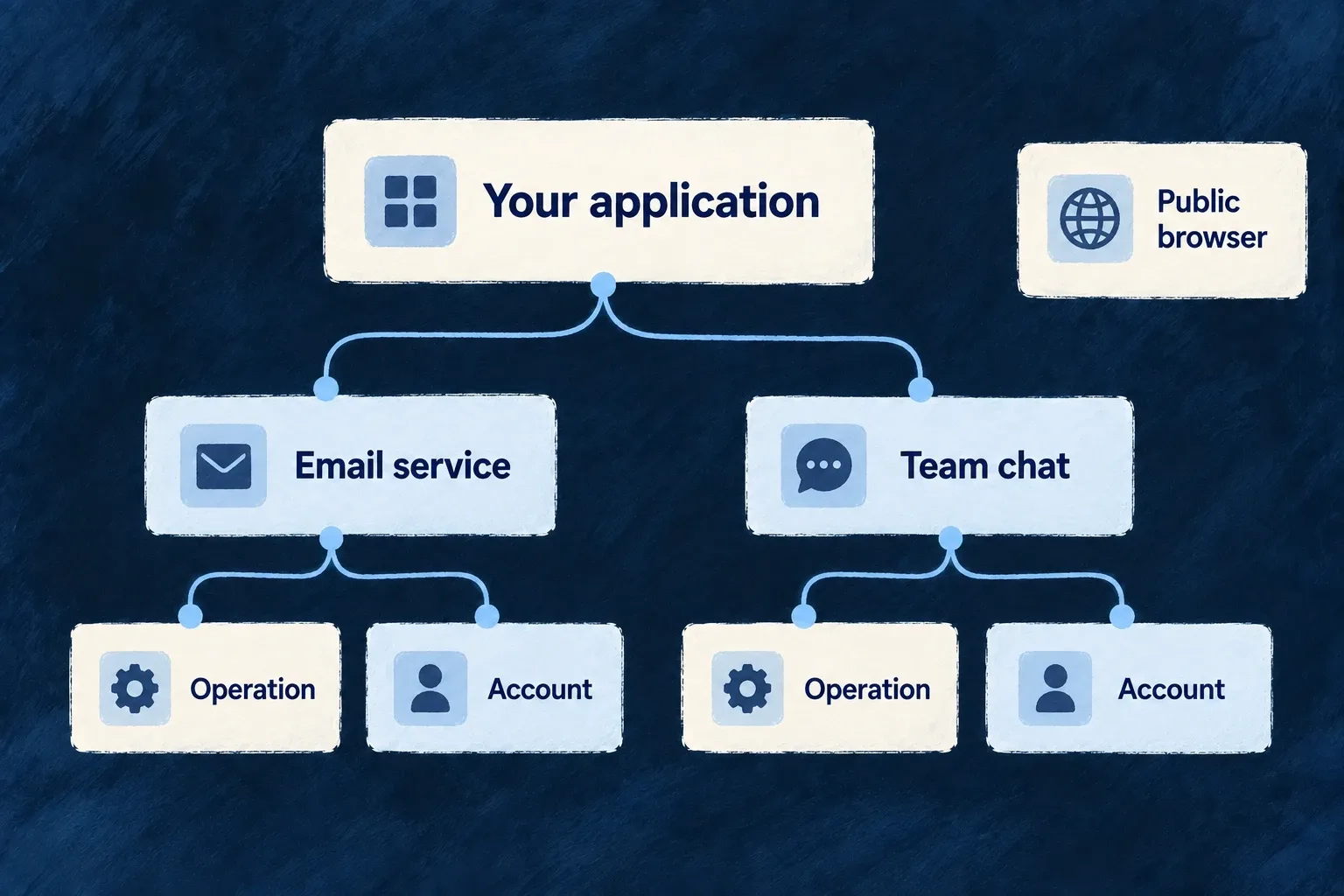

Wonder CRM declares Slack with engineCapabilities: [], providerCapabilities: [] and protocols: ['REST_API']. That is intentional: the application addresses this REST provider directly rather than selecting it for an engine service slot. Install the package in the runtime owner, declare the scope, supply credentials and synchronize its runtime artifacts.

Call with an account and inspect the vendor result

This illustrative application-service body uses an injected ProviderOperationExecutorBackendService as executor and the current operation’s executionContext. channelId and messageText are application inputs. Slack must already be declared in this backend, with its account connected and permission to post to that channel. Import z from zod and the connection enums from @wildo-ai/external-connectors-models.

const response = await executor.execute(
  {
    providerRef: 'slack',
    operationId: 'slack_post_message',
    connection: {
      ownerScope: ExternalProvider_Connection_OwnerScope.APPLICATION,
      delegation: ExternalProvider_Connection_DelegationMode.SERVICE,
    },
    input: { channel: channelId, text: messageText },
  },
  executionContext,
);

const reply = z.looseObject({
  ok: z.boolean(),
  error: z.string().optional(),
  channel: z.string().optional(),
  ts: z.string().optional(),
}).parse(response.output);

if (response.status < 200 || response.status >= 300 || !reply.ok) {
  throw new Error(`Slack did not accept the message: ${reply.error ?? response.status}`);
}
if (!reply.channel || !reply.ts) {
  throw new Error('Slack accepted the request without a usable message reference');
}

const postedMessage = { channel: reply.channel, timestamp: reply.ts };

The explicit target uses the application’s account acting as a service; omitting connection has that same default. To spend a customer organization’s account, supply its authorized connection target instead. The execution context carries the caller’s authority; a provider reference alone does not choose a customer account.

Slack can report a rejected operation in a successful HTTP response. Its message API returns ok; the caller must inspect it. This operation has no declared output schema, so the example validates the reply before recording the remote message reference. A timeout is not proof that no message was posted: do not blindly repeat a write that may already have succeeded.

For a typed convenience client, createSlackClient(executor.forExecution(executionContext, { connection })) binds the same context and account. Its authored slackPostMessage method returns the vendor payload, without the status envelope; apply the same reply checks. Use executor.execute when the application needs both status and output.

Add operations through the authored supplement

Slack’s supplement contributes an operation the imported sources did not express as a callable HTTP endpoint:

Selected from slack.authored.ts; surrounding declarations and imports are omitted.

slack_post_message: {
  operationId: 'slack_post_message',
  domain: 'default',
  method: API_HttpMethod.POST,
  pathTemplate: '/api/chat.postMessage',
  classification: ExternalOperation_Classification.WRITE,
  summary: 'Posts a message to a channel, a direct message, or a thread.',
  requestBody: { encoding: ProviderRestRequestBodyEncoding.JSON },
  // `text` is optional at the wire because `blocks` may carry the whole message, but one of the
  // two must be present. The vendor enforces that and answers `no_text`; declaring both required
  // here would refuse a legitimate blocks-only post.
  inputSchema: z.looseObject({
    channel: z.string().describe('Channel, private group, or user id to post to (e.g. C1234567890).'),
    text: z.string().describe('Message text. Fallback text when `blocks` is used.').optional(),
    blocks: z.array(z.looseObject({})).describe("Slack Block Kit blocks. Takes precedence over `text` for rendering.").optional(),
    thread_ts: z.string().describe('Timestamp of the parent message, to reply in its thread.').optional(),
    reply_broadcast: z.boolean().describe('Also send a threaded reply to the channel.').optional(),
    unfurl_links: z.boolean().describe('Whether to unfurl posted links.').optional(),
  }),
},

The same entry declares its input schema; the supplement’s authoredClient exposes a typed method delegating to ProviderOperationExecute. It accepts a channel and message content and calls the stable slack_post_message operation ID. This is an existing authored declaration, not evidence that a message was sent in this website review.

Keep regeneration separate from corrections

Generated files are replaced by transposition. A missing endpoint belongs in the transposer/source or an authored supplement, not a manual patch of the generated operation file. The catalogue record preserves identity decisions and records refused or pending operations when an address cannot be established.

The imported integration projects are read as sources; their executable integration packages are not installed as this runtime’s clients. Wildo, its dependencies and any authored supplement remain software to review. Transposition is not a claim of zero supply-chain risk or complete vendor API coverage.

Google’s backend module declares its OAuth/OIDC transport shape:

Selected from google.backend.module.ts; surrounding declarations and imports are omitted.

kind: ProviderProtocolRuntimeKind.OAUTH2_SSO,
authorizationEndpoint: "https://accounts.google.com/o/oauth2/v2/auth",
tokenEndpoint: "https://oauth2.googleapis.com/token",
userInfoEndpoint: "https://www.googleapis.com/oauth2/v2/userinfo",
jwksUri: "https://www.googleapis.com/oauth2/v3/certs",
issuer: "https://accounts.google.com",
scopes: [
  "openid",
  "email",
  "profile"
],
clientIdPublicConfigKey: "GOOGLE_OAUTH2_CLIENT_ID",
clientSecretRef: "GOOGLE_OAUTH2_CLIENT_SECRET",
supportsPkce: true,
supportsOidc: true,
tokenEndpointAuthMethod: "client_secret_post",

The contract also maps the vendor profile into identifier, email, name and verified-email fields. It describes protocol behavior; the application supplies its client ID and secret through provider configuration and secret resolution.

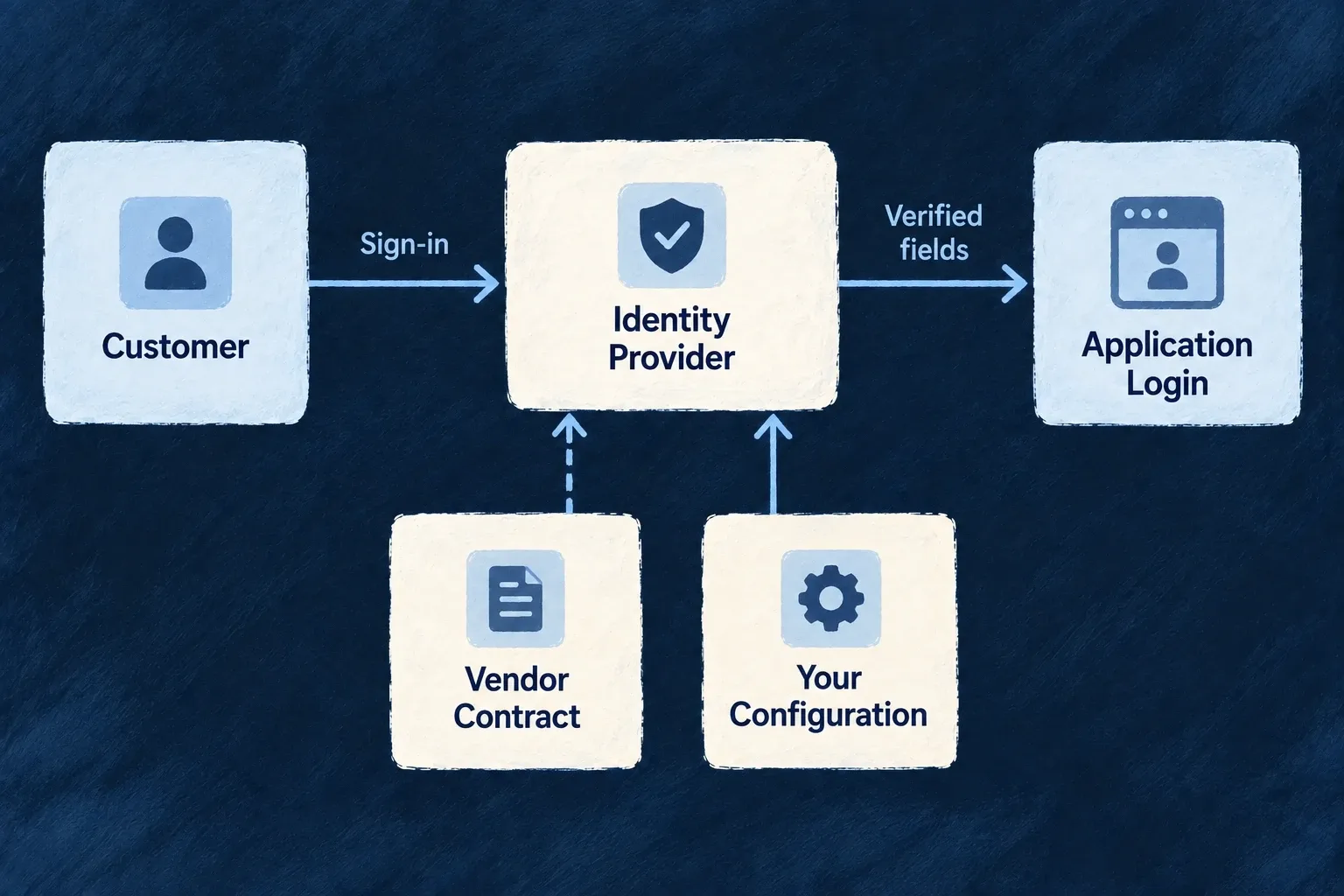

Configure the actual login path

This illustrative Google setup supplies two separate backend configuration sections. Merge them into the application’s existing configuration; retain its other auth settings and providers. googleClientId is the client ID issued for your application. Import OAuth2_Purpose and ExternalProvider_ExchangeProtocol_Kind from @wildo-ai/external-connectors-models.

const socialLogin = {
  auth: {
    socialOAuth2Providers: {
      google: {
        provider: 'google',
        enabled: true,
        purpose: OAuth2_Purpose.USER_SSO,
      },
    },
  },
  providerConfigurations: {
    google: {
      [ExternalProvider_ExchangeProtocol_Kind.SSO_OAUTH2]: {
        clientId: googleClientId,
      },
    },
  },
};

socialOAuth2Providers admits the provider for login. providerConfigurations.google.sso_oauth2 supplies the application account’s client ID. The Google contract resolves its secret from GOOGLE_OAUTH2_CLIENT_SECRET; set that through the deployment’s server secret material, never in the browser-facing configuration. Both the client ID and baseline secret are required before any scope-level credential override is applied.

In wildo.saas.config.ts, declare the provider inside providers.scopes.backend.providers (merge with the existing runtime entries):

google: {
  providerCapabilities: ['SSO_OAUTH2'],
  protocols: ['SSO_OAUTH2'],
},

Run wildo config sync to synchronize the provider artifacts. This engine-shipped provider needs no extra vendor package. The backend provider catalogue explains runtime registration. A provider installed in another runtime is not thereby enabled on the login backend. The browser’s provider contribution supplies public identity/display data; it cannot replace the backend account setup.

Allow the method for the intended people

In the intended userTypes[ref].auth policy, add the method while preserving the existing policy:

auth: {
  authMethodsEnabled: {
    ...existingAuthMethods,
    [AuthMethod.EXTERNAL_OAUTH2]: true,
  },
  // Keep the user type’s existing registration, MFA and other policies.
},

Import AuthMethod from @wildo-ai/saas-models. This fragment illustrates the method change, not a complete user-type definition. New-account creation is a separate decision: if public social registration is intended, the target user type’s registration.mode must be RegistrationMode.OPEN and registration.allowedMethods must include AuthMethod.EXTERNAL_OAUTH2 (RegistrationMode is also exported by @wildo-ai/saas-models). The initiating frontend must map to that same user type through frontendServices[serviceName].usersManagement, with auth: true for sign-in and register: true for new-account creation. An unrelated user type with open registration cannot authorize this flow. Enabling login alone does not grant open registration or bypass verified-email linking rules.

Wonder Todos shows the corresponding frontend-to-user-type mapping in its backend configuration. Adapt the service and user-type references to your application; use register: false when only existing accounts should sign in. This mapping alone does not enable social login.

frontendServices: {
  'wonder-todos-app': {
    usersManagement: {
      member: { register: true, auth: true, isDefault: true },
      admin: { register: false, auth: true },
    },
  },
},

Register the callback that this deployment exposes

The resolver constructs the redirect URI from runtime.endPoints.main_backend_api.publicUrl followed by /api/v1/auth/oauth2/callback/google. Register that exact URI with the vendor. The origin is the public backend address, not the frontend’s address. Missing public URL, client ID or secret stops connection resolution before a redirect is usable.

Use the standard authentication flow to start login and consume its state/callback. Do not create an account from a profile supplied directly by the browser. The resolver example proves configuration assembly; a successful external sign-in still requires the vendor account, callback registration and the application’s account policy to agree.

Enterprise OIDC can use an application-scoped connection for the application’s sign-in or an organization-scoped connection for a customer’s sign-in. Each keeps its own configuration and access policy. SAML sign-in is served by the authentication subsystem, not by pretending the reserved provider-side SAML capability is a shipped vendor module.

Use the same vendor reference consistently across the configured surfaces. The authentication subsystem resolves sign-in contracts directly; these capabilities do not require inventing an engine service-selection slot.

Decide how to handle missing provider assurance

Social sign-in and enterprise delegation have different trust contracts. Provider definitions record the evidence supported by Google, Microsoft, GitHub and Apple, together with prerequisites and documentation. Account-level two-factor enrollment is not proof of MFA in the current login.

Set userTypes.<type>.auth.mfaPolicy.externalAssuranceEnforcement in backend configuration using ExternalAssuranceEnforcement from @wildo-ai/saas-models. The default records a warning when required social MFA cannot be established; STRICT refuses session issuance. Organization policy can tighten this setting. Invalid tokens and failed explicit authentication-context demands remain refusals in either mode.

Enterprise OIDC connections delegate MFA enforcement to the customer’s identity provider. Application terms should explain that responsibility and Wildo’s retained validation and access checks. Provider brand alone does not establish enterprise trust.

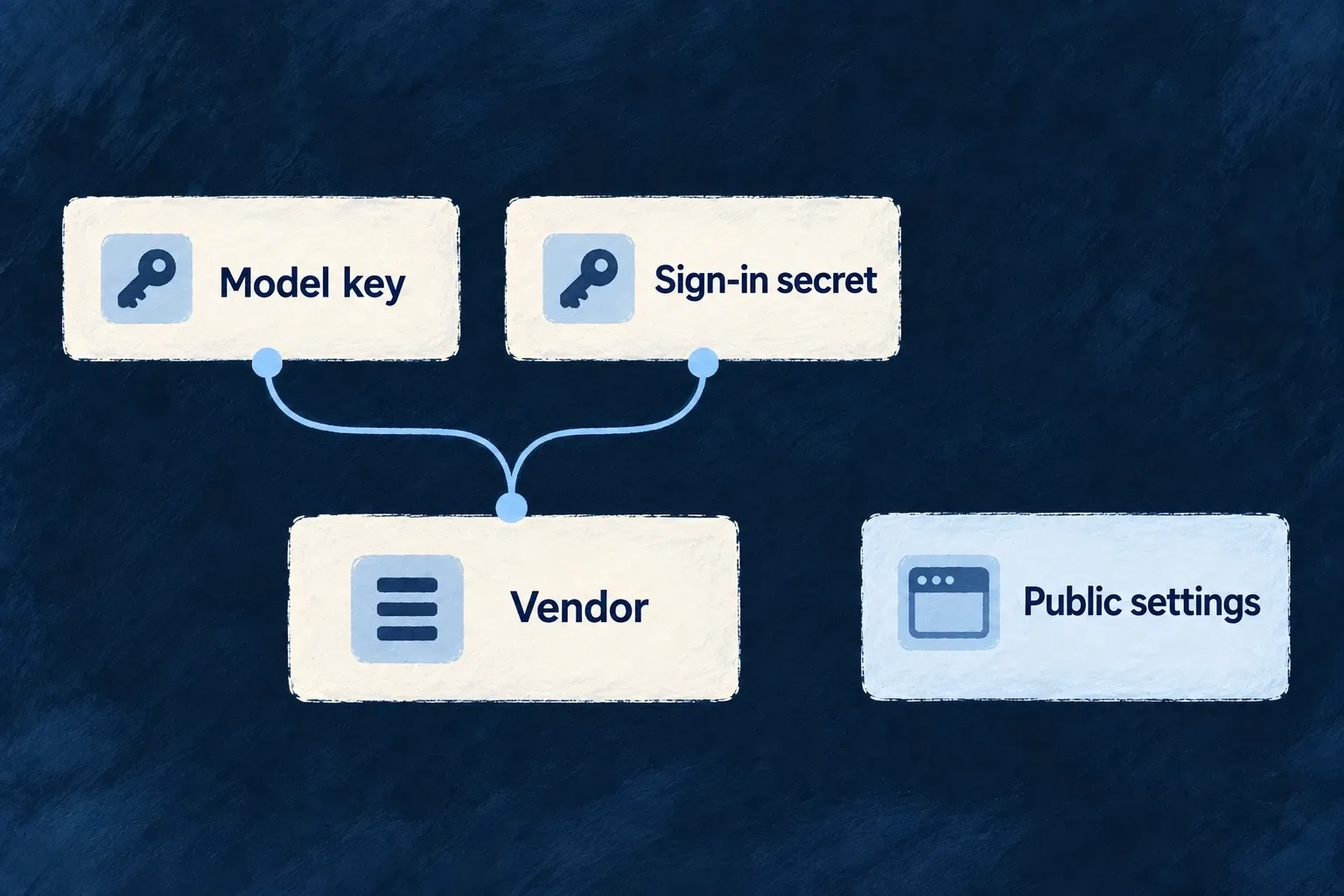

The Google backend module names independent secrets for its model and sign-in protocols:

Selected from google.backend.module.ts; surrounding declarations and imports are omitted.

secretsContract: {
  apiKey: {
    envVarName: "GOOGLE_API_KEY",
    required: true,
    description: "Google API key for Gemini LLM calls."
  },
  oauth2ClientSecret: {
    envVarName: "GOOGLE_OAUTH2_CLIENT_SECRET",
    required: true,
    description: "Google OAuth2 client secret for SSO token exchange."
  }
},

The keys describe the requirement; envVarName connects it to deployment material, and the description explains its purpose. Protocol contracts refer to the appropriate secret. The module is registered on the backend side, and the application declares it in each runtime scope that should use it.

wildo config sync materializes scoped runtime environments from the provider declarations. Application runtimes receive provider material for their declared set; the platform tier has an explicit broader entitlement. An empty declared set differs from an omitted scope. This contract governs generated environments, not a claim that a process can never receive an extra variable from its operator.

Resolve the credential for the account the call names

The provider executor resolves access through an explicit connection target. Its owner scope determines which account supplies the credential:

resolveProviderSecretForTarget implements these choices and is consumed by the shared HTTP API access resolver. Authorization of the target is a separate check: naming an owner does not grant permission to spend that owner’s credential. Let the sanctioned executor resolve access from the admitted target rather than looking up a secret in application code.

An encrypted credential that cannot be opened is an error, not evidence that another identity should be tried. This keeps the remote action attributable to the requested account. Some older framework consumers use a separate organization-first resolver with deployment fallback; that legacy behavior is not the target-aware executor’s contract.

Browser modules carry public configuration and receive no backend secret contract.

A required flag is information used by the relevant provider builder, not a universal startup validation guarantee. Optional credentials still need validation by the provider that consumes them. Never put a real secret value in the module, public contribution or example code.

The PostHog backend provider puts its optional package next to the factory that uses it:

Selected from posthog.backend.module.ts; surrounding declarations and imports are omitted.

  protocols: [],
  requiredPackages: ['posthog-node'],
  agentCallTraceSinkFactory: (config, logger) =>
    new PostHogAgentCallTraceSink(
      {
        projectApiKey: config.apiKey,
        // PostHog-specific connection detail — owned by the provider, NOT the engine.
        host: process.env.POSTHOG_HOST,
        captureContent: config.captureContent,
        sampleRate: config.sampleRate,
      },
      logger,
    ),
};

This is a module fragment, not application configuration. The application declares the provider in the runtime scope and installs posthog-node in the package that runs it. The sink lazy-loads that SDK; the engine does not require every application to carry it as an unconditional engine dependency.

Understand the startup check

ExternalProvidersRegistryBackendService.reportMissingProviderRuntimePeers iterates the composed modules’ requiredPackages. It tries resolution from the running application first and the engine module second, avoiding a false missing-package report when the SDK is installed only in the application.

The diagnostic is a warning, not installation or a process-wide refusal. A provider may be declared but never reached in an environment. When the sink is actually constructed, its lazy import and provider-specific failure handling determine whether it is available.

This field is not the complete dependency graph. Some protocols carry an SDK descriptor on their runtime contract, and browser activation has its own optional-peer boundary. Check the actual provider’s requirement and its consumer rather than assuming every dependency appears here.

The declaration therefore has two useful roles: it documents what the provider loads and supplies an actionable startup diagnostic. It does not prove the installed package’s version is compatible or that a real vendor request succeeds.

ProviderComplianceProfile carries deployment models, vendor-region labels and an optional legal identity. ApplicationProviderComplianceChoice carries the operator’s selection per configured provider. These are different facts: a vendor offering a region does not establish that the application selected it.

Wonder CRM records the self-hosted monitoring choice in its application configuration:

Selected from wildo.saas.config.ts; surrounding declarations and imports are omitted.

sentry: {
  deploymentModel: ProviderDeploymentModel.SELF_HOSTED,
},

This selected entry belongs under providerComplianceChoices. The schema requires a region for a vendor-hosted choice and disallows a provider-processing-region field on a self-hosted choice. The operator’s own hosting description covers the latter; the provider-region field is not a general infrastructure locator.

Report disagreement instead of inventing agreement

The comparison helper makes a configured region outside the provider’s declared list visible:

Selected from provider-compliance-profile.shared.schemas.ts; surrounding declarations and imports are omitted.

for (const [providerRef, choice] of Object.entries(params.choices)) {
  if (choice.processingRegion === undefined) continue;
  const profile = params.profilesByProviderRef[providerRef];
  // No profile is not an assertion about a region — it is a provider that declares no compliance
  // profile at all, which is a different gap and belongs to whoever reports THAT.
  if (profile === undefined) continue;
  if (profile.processingRegions.includes(choice.processingRegion)) continue;
  asserted.push({ providerRef, region: choice.processingRegion });
}

return asserted;

The companion’s compliance-primary-facts report consumes that result using profiles carried by provider specifications. An unlisted choice is reported as application-asserted, not refused automatically: it may be a typo or a provider list that needs updating.

A profile is generally optional, but backend composition requires it for a coding-agent provider. Where information is missing, keep that absence explicit. The profile is evidence about declared provider options, not a certificate, a transfer determination or proof that every outbound path has been identified.

Reconcile the configured services with the application’s actual operations and its processor information. Direct outbound requests, webhooks and application-owned integrations can carry data too; this metadata alone does not enumerate or constrain every egress path.

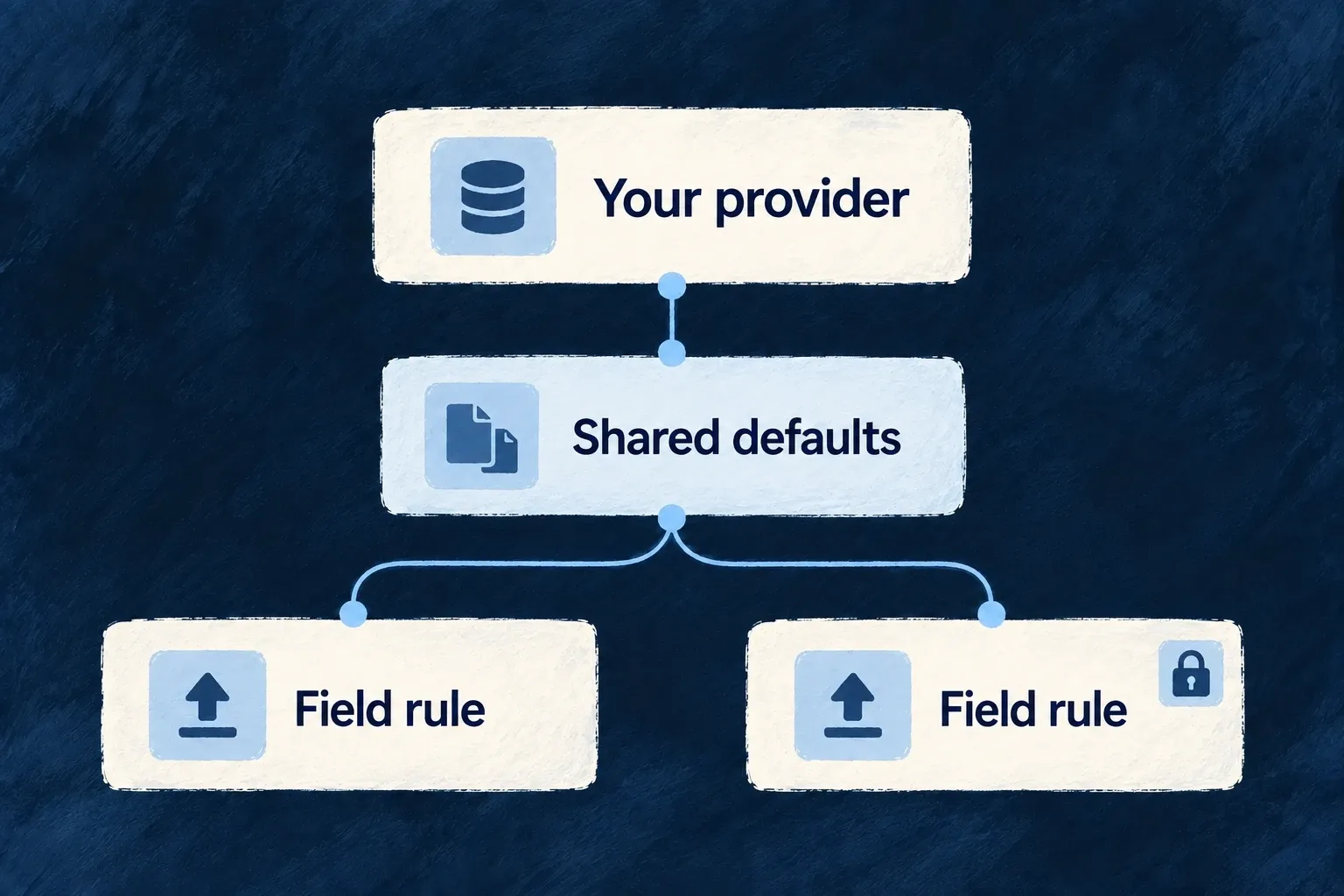

Wonder Todos’ application-owned frontend module is a real configuration provider:

Selected from file-picker.frontend-app.module.ts; surrounding declarations and imports are omitted.

export const ApplicationFilePickerFrontendAppProvider: FrontendAppProviderModule = {
  // Identity (#328): an application-owned provider is APPLICATION-origin; a file picker binds no
  // engine slot, so it is CATALOGUE (EXTENSION is for a substitute that fills an engine slot).
  metadata: defineProviderMetadata({
    ref: 'wonderTodosFilePicker',
    packageName: '@wonder-todos/main-app',
    tier: ProviderTier.CATALOGUE,
    origin: { kind: ProviderOriginKind.APPLICATION },
  }),
  providerCapabilities: [BUILTIN_PROVIDER_CAPABILITY.FRONTEND_FILE_PICKER],
  protocols: [BUILTIN_PROVIDER_PROTOCOL.FRONTEND_SDK],
  publicConfig: {
    acceptedMimeTypes: ['image/*', 'application/pdf'],
    maxFileSizeMb: 25,
    maxSelectionCount: 10,
    uploadNamespace: 'task-attachments',
  },
};

APPLICATION records its origin. CATALOGUE is appropriate because this provider does not fill an engine service slot; an extension that does fill one has different tier semantics. The metadata does not supply a picker renderer: this example carries constraints consumed by standard file controls.

Make the module discoverable and reachable

The frontend contribution names a runtime import path, permitted frontend target and values-free entry derived from the module. Export the runtime module from the package entrypoint, declare its reference under the app frontend service’s providers, and run configuration synchronization. The served data and a browser startup module map must both be present for function-valued provider code to execute. Configuration synchronization supplies the data; it does not currently generate that frontend code map, which must be provided explicitly.

Backend-owned integrations instead expose a backend module and companion contribution through their package, declare their protocol runtime contract and secrets requirements, and install that package in each relevant runtime. The framework composition validates identity/tier/protocol coherence; those checks do not implement the vendor API for you.

A custom browser component that returns remote files also needs its declared delivery contract and the sanctioned host/checking path. Public configuration defaults are not server upload enforcement, and a custom direct mount owns the checks it bypasses. Keep the provider’s responsibility narrow and document which standard consumer actually reads each setting.

The backend runtime-kind object defines the executable protocol arms:

Selected from commons.external-connectors-models.schemas.ts; surrounding declarations and imports are omitted.

export const ProviderProtocolRuntimeKind = Object.freeze({
  LLM: ExternalProvider_ExchangeProtocol_Kind.LLM_PROVIDER,
  IMAGE: ExternalProvider_ExchangeProtocol_Kind.IMAGE_PROVIDER,
  EMBEDDINGS: ExternalProvider_ExchangeProtocol_Kind.EMBEDDINGS_PROVIDER,
  DOCUMENT_EXTRACTION: ExternalProvider_ExchangeProtocol_Kind.DOCUMENT_EXTRACTION_PROVIDER,
  AGENT_CLIENT_PROTOCOL: ExternalProvider_ExchangeProtocol_Kind.AGENT_CLIENT_PROTOCOL,
  EMAIL: ExternalProvider_ExchangeProtocol_Kind.EMAIL_PROVIDER,
  OAUTH2_SSO: ExternalProvider_ExchangeProtocol_Kind.SSO_OAUTH2,
  BILLING: ExternalProvider_ExchangeProtocol_Kind.BILLING_PROVIDER,
  WEBHOOK_ORIGINATOR: ExternalProvider_ExchangeProtocol_Kind.WEBHOOK_ORIGINATOR,
  SMS: ExternalProvider_ExchangeProtocol_Kind.SMS_PROVIDER,
  REST: ExternalProvider_ExchangeProtocol_Kind.REST_API,
} as const);

Audio and video names remain in the broader exchange vocabulary but do not appear in this runtime subset. A declaration cannot obtain an executable implementation merely by selecting their names.

The provider-side SSO_SAML capability is also reserved. SAML authentication itself exists through the engine’s authentication subsystem, so the reserved provider name must not be presented as absence of SAML login.

Separate reservation from withdrawal

The former BILLING_PAYMENTS engine slot was withdrawn. Billing uses its supported mapping and runtime contract; the removed slot is not an option to enable. Document generation and scanning also have their own implementation paths rather than unfillable provider-selection entries.

When adding a provider, supply the implementation and the capability/protocol mapping that makes it reachable. Do not reintroduce a removed engine slot solely to make the catalogue appear broader. These reserved entries describe vocabulary boundaries, not a release roadmap.

This selected notification block comes from Wonder Todos’ Todos resource configuration. It shows user-facing and machine-facing notifications beside each other inside an operation:

      userNotifications: [
        { target: CoreUserNotificationTarget.USER_SELF, channel: CoreUserNotificationChannel.FRONT_END_SUCCESS },
        { target: CoreUserNotificationTarget.ORGANIZATION_USERS, channel: CoreUserNotificationChannel.WEBSOCKET },
      ],
      m2mNotifications: [{
        channel : CoreM2MNotificationChannel.WEBHOOK_ORGANIZATION, level : M2MNotificationLevel.INFO,
      }]
    },

Register the resource configuration through the shared module as usual. WEBHOOK_ORGANIZATION resolves the organisation from execution context; WEBHOOK_APPLICATION selects application-level configuration. These are different audiences. A custom channel string is vocabulary, not a sender implementation: the corresponding dispatch path must exist.

Connect declaration to actual delivery

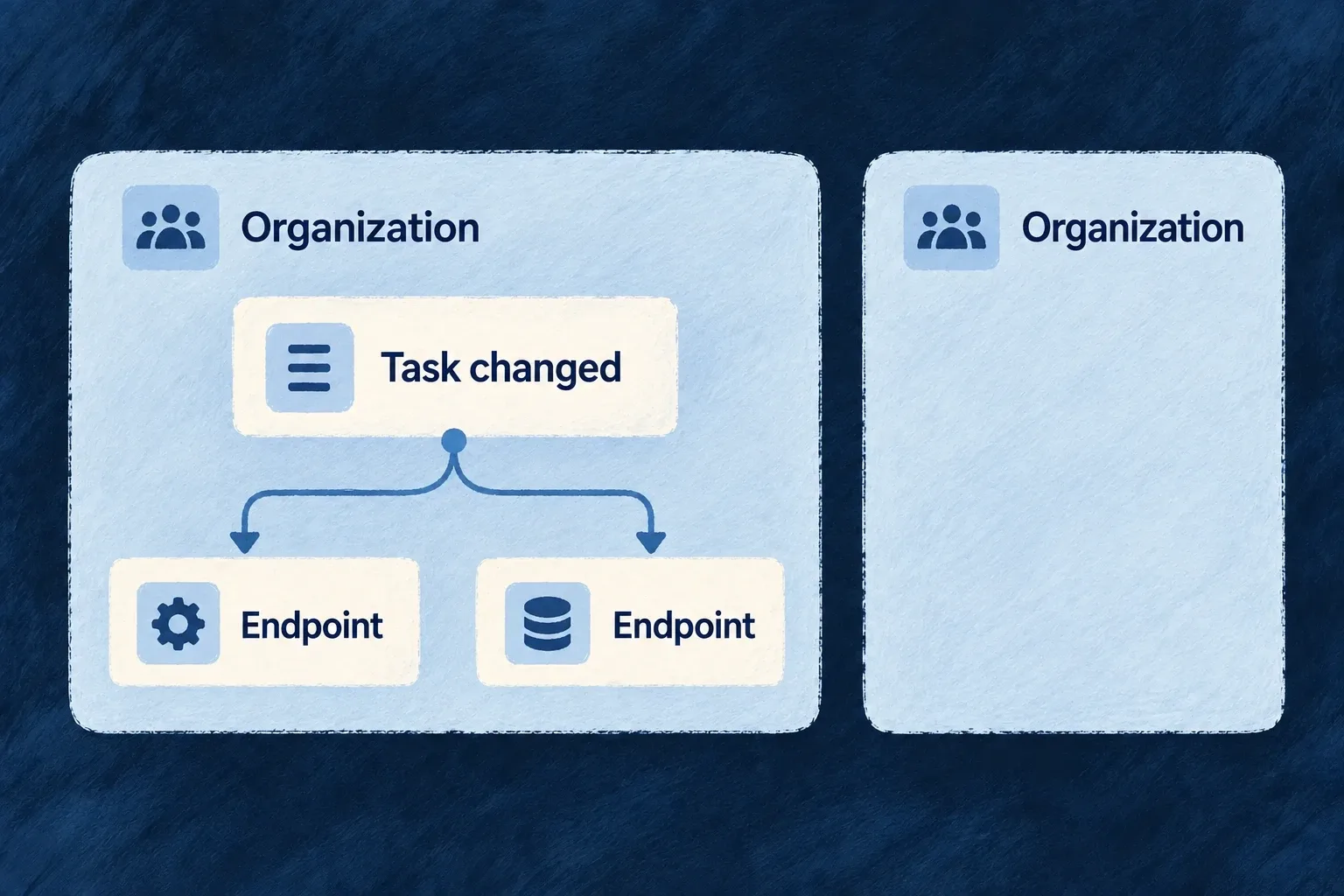

M2MWebhookDispatcherBackendService resolves the scope, checks the feature and enabled webhook configuration, then filters enabled endpoints. For the organisation channel it requires a valid organisation identity instead of falling back to application scope. The operation result is serialized through the resource response serializer before fan-out.

The dispatcher serializes the body once, creates a delivery-log row per enabled endpoint and queues each delivery. The worker owns signing, HTTP attempts and retry classification. That separation keeps the business action from waiting for the receiver’s network response.

Enable and place the webhook administration surface and configure the signing infrastructure and worker queue. An operation declaration alone does not create endpoints. If queue submission fails after a row exists, the row remains pending for an administrator retry; do not interpret operation success as receiver acknowledgement.

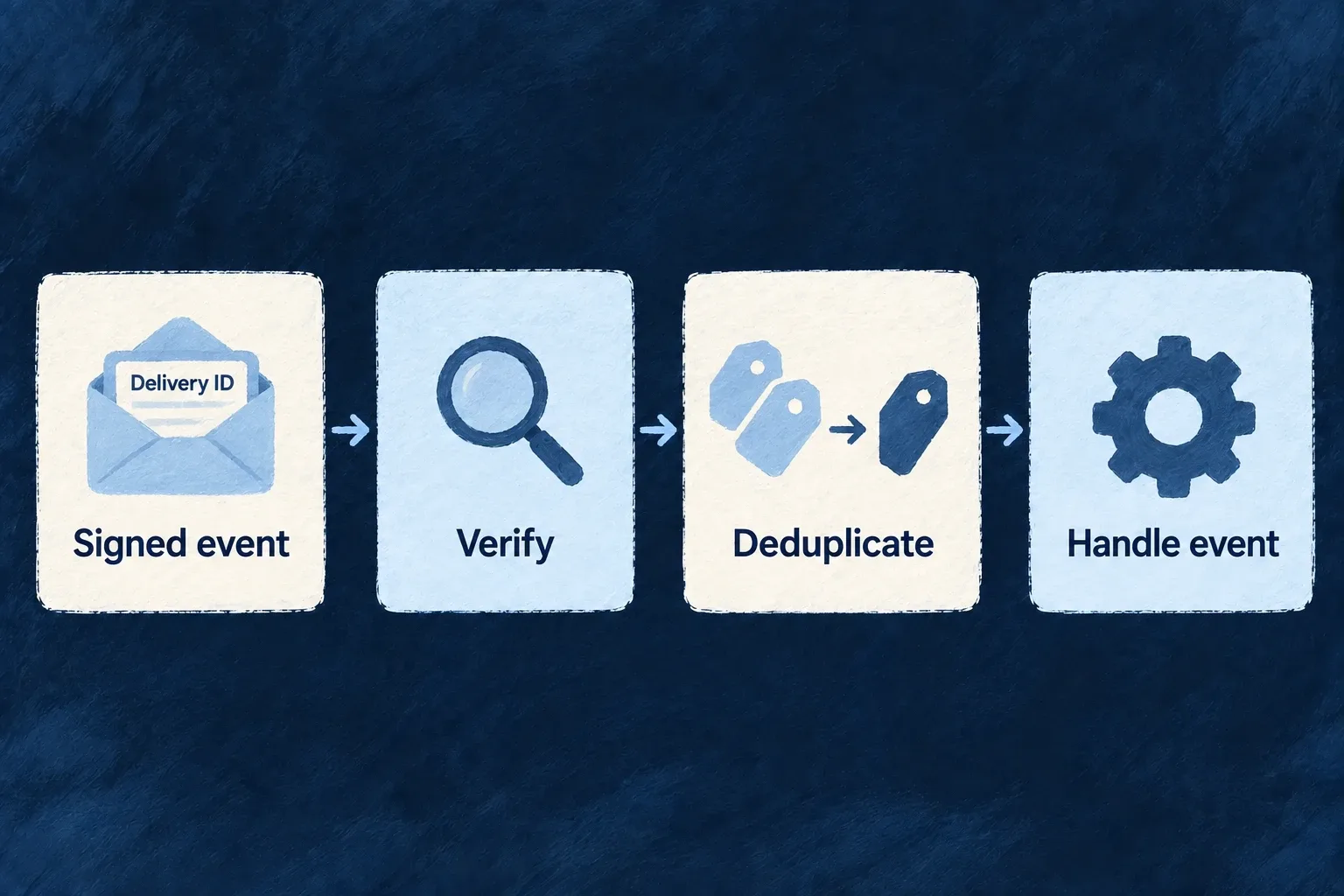

Continue with signed customer deliveries for the receiver contract and endpoint testing for the diagnostic path.

Create the scoped webhook configuration, enable it and add enabled HTTPS endpoints. Resource operations must emit the matching machine-notification channel. Signing keys and the delivery worker must be available; putting Webhooks in the Settings Hub only exposes administration, not the backend prerequisites.

A delivery has a stable ID across attempts. The worker signs a fresh token for each attempt and sends it in x-wildo-webhook-signature. Read the current applicationPublicKeyPem from the webhook configuration; a rotation changes the verification key, so do not hardcode a deployment-specific key identifier.

This selected contract from m2m-webhook-delivery-contract.shared.ts states the signed claim settings and payload hash algorithm:

  signature: {
    issuer: APPLICATION_JWT_ISSUER,
    audience: 'WEBHOOK',
    expiresIn: '6h',
  },
  /** Algorithm of the `bodyHash` claim: a hex digest of the exact raw request bytes. */
  bodyHashAlgorithm: 'sha256',
  /** Status codes (besides 5xx and transport failures) that schedule another attempt. */
  retryableHttpStatuses: [408, 429],

Verify the signature with the application’s key while pinning ES256, the expected issuer and audience. Check expiry, recompute SHA-256 over the exact raw request bytes and compare the signed bodyHash. Only then deserialize and act. Use jti as the delivery deduplication key; storing successful processing atomically with the business effect is the receiver’s responsibility.

This Node.js receiver example uses jsonwebtoken. Pass a Headers object, the unmodified request body as a Buffer, and the public key obtained from the trusted application configuration. Keep body-parser middleware from replacing those bytes with reserialized JSON.

import jwt from 'jsonwebtoken';
import { createHash } from 'node:crypto';

function verifyDelivery(headers, rawBody, applicationPublicKeyPem) {
  const token = headers.get('x-wildo-webhook-signature');
  if (!token) throw new Error('Missing webhook signature');

  const claims = jwt.verify(token, applicationPublicKeyPem, {
    algorithms: ['ES256'],
    issuer: 'wildo-application',
    audience: 'WEBHOOK',
  });

  const bodyHash = createHash('sha256').update(rawBody).digest('hex');
  if (typeof claims !== 'object' || claims.bodyHashAlg !== 'sha256'
      || claims.bodyHash !== bodyHash || !Number.isInteger(claims.exp)
      || typeof claims.jti !== 'string' || !claims.jti) {
    throw new Error('Invalid webhook claims or body');
  }
  return { deliveryId: claims.jti, synthetic: claims.synthetic === true, event: JSON.parse(rawBody.toString('utf8')) };
}

Only call the business handler after this succeeds. If synthetic is true, acknowledge the verified probe without applying a business effect. Otherwise, store deliveryId with the business effect in one transaction; acknowledge an already processed ID without applying the effect again. A retry carries the same ID with a freshly signed token. This helper verifies a delivery; the receiver’s transaction and HTTP acknowledgement remain application-specific.

Understand acknowledgements and retries

The delivery contract allows five total attempts, with retry delays of one minute, five minutes, thirty minutes and two hours. A 2xx response completes delivery. Transport failures, 5xx, 408 and 429 are retryable; redirects are reported rather than followed. The request timeout is thirty seconds and captured response text is bounded.

One delivery record is created for each destination endpoint. Retries update that record’s attempt count, last and next attempt times, and latest response or failure; they do not create a separate response history for every attempt. Administrative retry requeues the delivery, and date-bounded cleanup removes eligible terminal records. A successful delivery establishes receiver acknowledgement, not proof that the receiver completed its own downstream workflow.

Use HTTPS. The current endpoint contract also admits HTTP, but a signature does not encrypt payloads in transit. The outbound-target guard and redirect policy apply to this path; request safety explains their exact boundary.

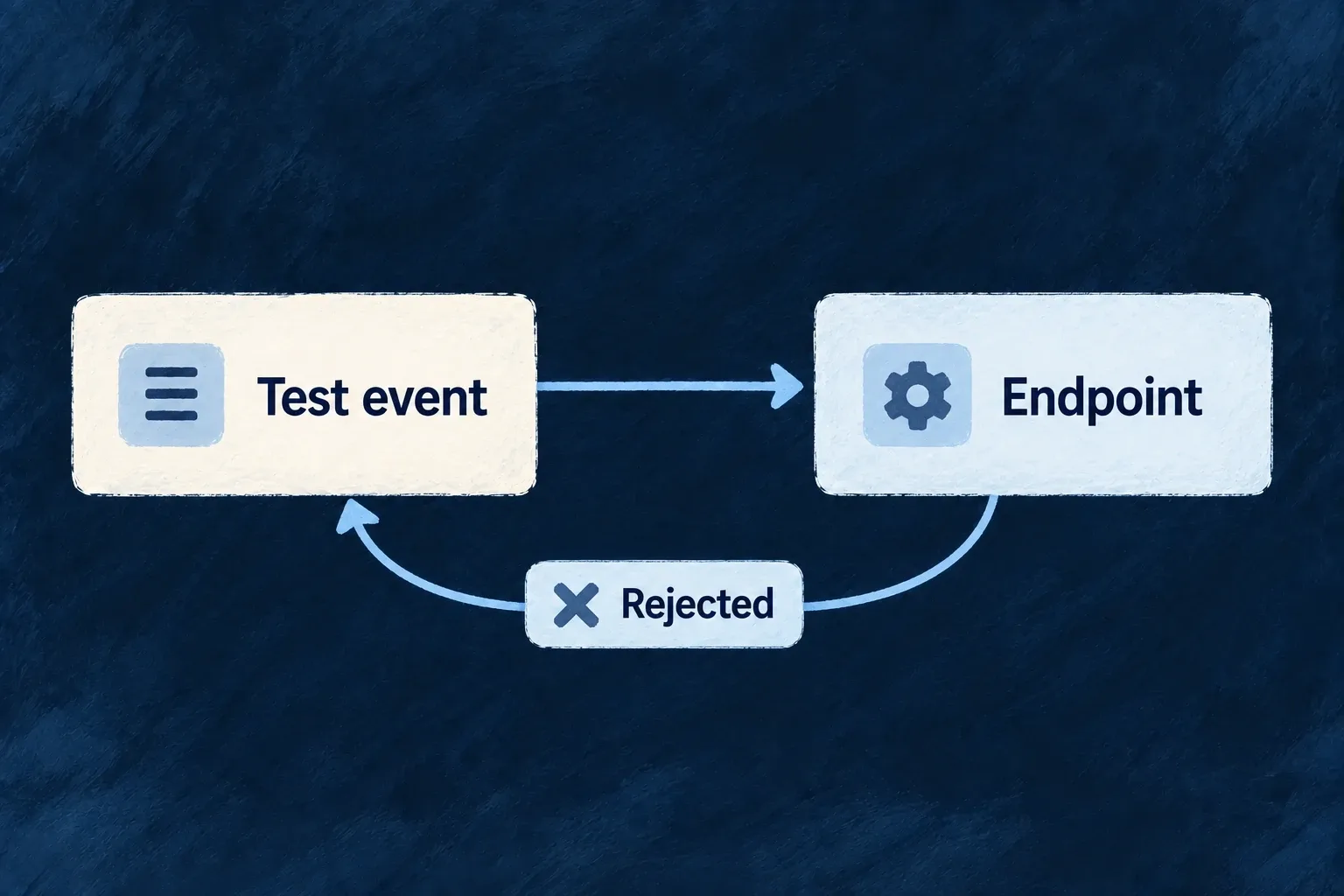

The webhookConfig.testEndpoint operation accepts an endpointId in its request body, uses the stored endpoint and the application’s signing key. It is an update-like operation because it sends real traffic, even though it creates no delivery-log row. It shares sendSignedWebhookRequest with the delivery worker, so timeout, signature header, URL guard and redirect behavior are exercised on the same path.

This is a real outbound request with synthetic claims. The receiver should identify the probe and verify it without treating it as an ordinary business event. It does not create a delivery-log row; the operation records an audit event separately.

The request and response below come from webhook-config.shared.resources-config.schemas.ts, with documentation comments omitted. Send the stored endpoint’s ID in the operation body; the returned URL confirms which destination was tested. The diagnostic includes both the transport verdict and details for correlating the attempt with the receiver.

export const WebhookConfig_TestEndpointRequestDto = z.object({
  endpointId: z.string().min(1),
});

export const WebhookConfig_TestEndpointResponseDto = z.object({
  endpointId: z.string(),
  url: z.string(),
  transportIsPlaintext: z.boolean(),
  outcome: z.enum(WebhookEndpointProbeOutcome),
  responseStatus: z.number().int().optional(),
  responseBodyTruncated: z.string().optional(),
  failureReason: z.string().optional(),
  durationMs: z.number().int().nonnegative(),
  signatureJti: z.string(),
  attemptedAt: z.date(),
});

Read the diagnostic outcome, not only the API status: a successfully executed probe may return HTTP 200 with UNREACHABLE. Unknown endpoint IDs, missing configuration and rate-limit refusal are request errors.

ACCEPTED means the endpoint returned 2xx. It only supports confidence in signature verification when that receiver actually verifies before responding; a server returning 200 unconditionally proves reachability, not verification. REJECTED retains a response status; UNREACHABLE covers transport failures; NOT_SENT separates a local signing problem.

Acknowledge a verified probe without running business work

Use the receiver verification shown in signed webhook delivery. It verifies the signature and raw-body hash before returning the authenticated synthetic claim. This illustrative handler fragment uses that verifyDelivery helper; acknowledge sends the HTTP response and handleBusinessEventOnce is the receiver’s own durable deduplication and business handler.

const delivery = verifyDelivery(headers, rawBody, applicationPublicKeyPem);
if (delivery.synthetic) {
  acknowledge(204);
  return;
}

await handleBusinessEventOnce(delivery.deliveryId, delivery.event);
acknowledge(204);

Do not branch on an unverified body field or decoded JWT. A failed verification must not receive a successful acknowledgment. The genuine event path must persist its delivery identity with its business effect; the probe path deliberately performs neither business work nor ordinary delivery processing.

Make the result actionable

Register and expose the webhook configuration’s normal administration operations. The test is rate-limited, and its limiter fails closed if unavailable. Do not add a second generic HTTP test button: it could pass while the actual signing or delivery path fails.

The probe is a diagnostic, not a guarantee of future delivery. After acceptance, emit a real configured resource event and inspect the delivery log and receiver behavior. Keep endpoint test handlers free of unintended business side effects and use HTTPS endpoints just as for production deliveries.

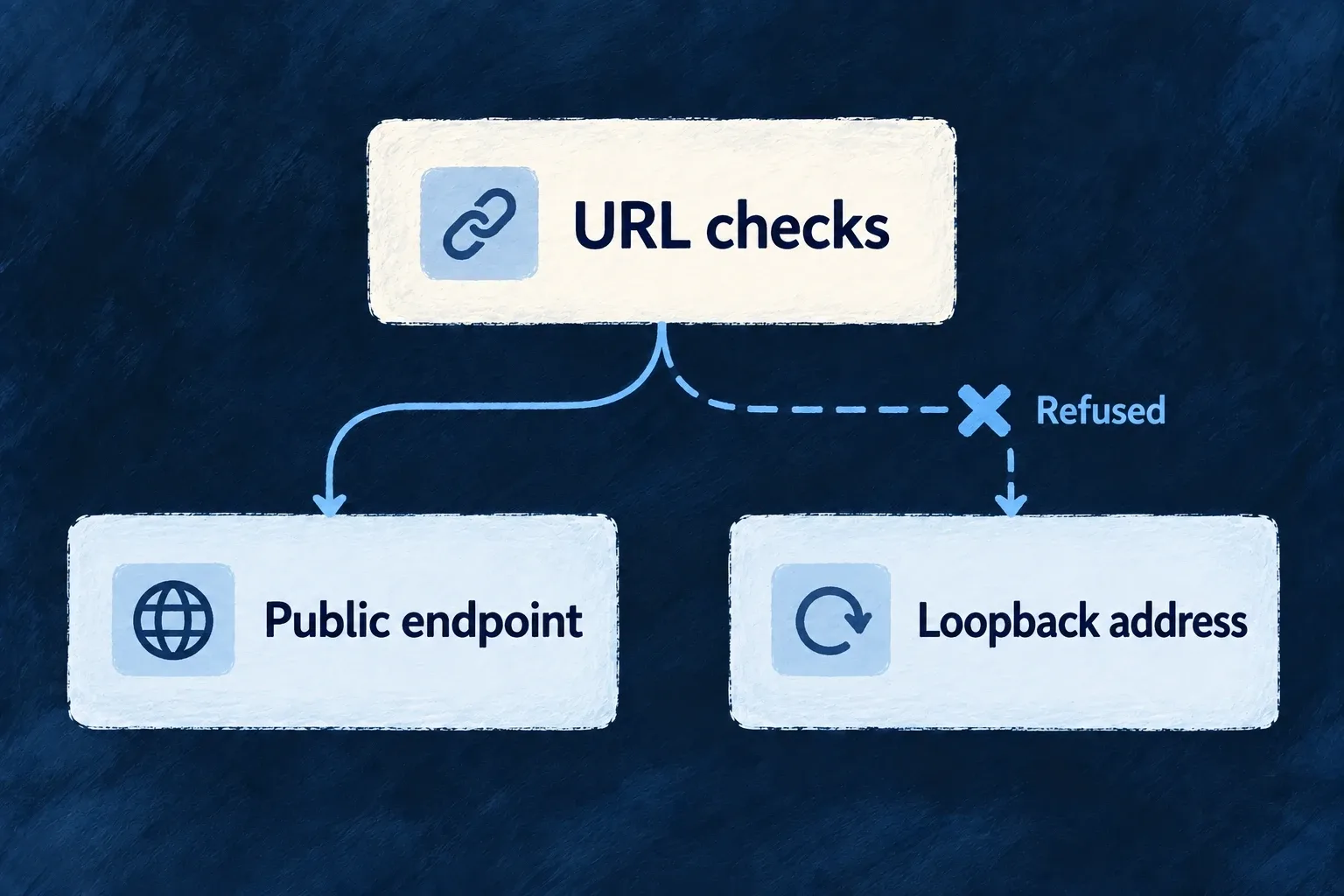

classifyOutboundTargetUrl checks admitted schemes, credentials in the URL, special-use hostnames and literal IP ranges. In the webhook transport the check happens immediately before I/O, not only when the endpoint is saved:

  const refusal = refuseUnsafeWebhookTarget(params.url);
  if (refusal) {
    return { networkError: refusal, durationMs: Date.now() - startedAt };
  }

  const abort = new AbortController();
  const timer = setTimeout(() => abort.abort(), REQUEST_TIMEOUT_MS);

This selected fragment comes from m2m-webhook-signed-request.backend.utils.ts. A refusal is returned as a transport result; the worker and probe then report it according to their own outcome contracts. The same transport uses redirect: 'manual', so a redirect cannot silently move delivery to a different address.

Distinguish the protection levels

These are not interchangeable. The webhook path currently uses the URL classifier and ordinary fetch; an ordinary hostname resolving to a private address is outside that classifier’s protection. A preflight DNS check alone also leaves a change-between-check-and-connect problem. The client-metadata fetcher uses pinnedOutboundFetch to close that gap on its own path.

Do not claim that every outbound request in the framework has identical protection. When implementing a new server-side callback or metadata reader, use the transport suitable for its trust boundary and permitted schemes, and preserve redirect and timeout handling. Network egress policy remains a deployment responsibility.

The classifier does not establish reachability or endpoint ownership. It answers whether the supplied target is disallowed by its checks. Use the endpoint probe to investigate a webhook’s response, without interpreting acceptance as a general network-safety audit.

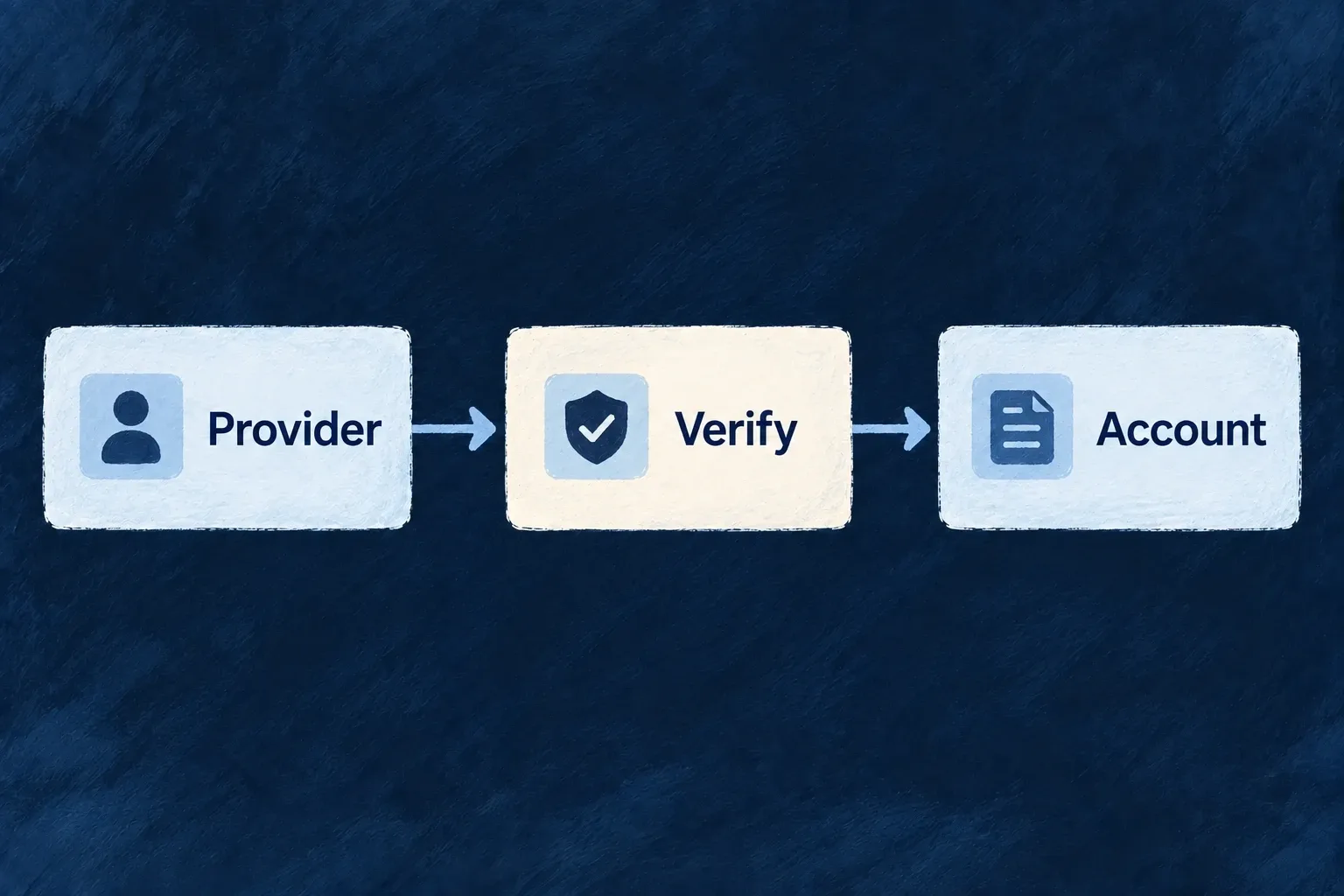

Stripe declares its billing API protocol separately from WEBHOOK_ORIGINATOR. Enable the protocols required by the integration and supply STRIPE_WEBHOOK_SECRET as backend secret configuration. Register the endpoint with the provider using the actual deployed API address.

This selected protocol entry comes from stripe.backend.module.ts. Documentation comments are omitted; the provider’s other protocols and module registration remain outside this excerpt.

protocol: "WEBHOOK_ORIGINATOR",
runtimeContract: {
  kind: ProviderProtocolRuntimeKind.WEBHOOK_ORIGINATOR,
  secretRef: "STRIPE_WEBHOOK_SECRET",
  signatureHeaderName: "stripe-signature",
  endpoints: [
    {
      key: 'billing',
      capability: BUILTIN_PROVIDER_CAPABILITY.BILLING,
      signatureConfig: {
        algorithm: Hook_SignatureAlgorithm.HMAC_SHA256,
      },
      triggerStrategy: Hook_TriggerStrategy.WEBHOOK,
      eventTypes: [...STRIPE_BILLING_EVENT_TYPES],
      scopeBinding: {
        mode: 'polymorphic',
        payloadScopeIdPath: 'data.object.customer',
        lookupField: 'providerCustomerId',
        variants: STRIPE_BILLING_ACCOUNT_WEBHOOK_VARIANTS,
      },
    },
  ],
},

The highlighted scope binding matches data.object.customer through providerCustomerId to the configured billing-account variants. The endpoint key supplies the route segment; its capability selects the registered billing handler. Do not infer the tenant from an unverified arbitrary request parameter.

Register a complete receiver, not merely a route name

WebhookAutoController discovers enabled provider endpoint declarations. It checks that the capability handler and endpoint adapter exist before mounting the route; an incomplete combination is withheld and reported rather than producing a route that can never dispatch.

The request path preserves raw body bytes for signature verification. The adapter and handler own provider-specific verification and event processing, with idempotency handling in that pipeline. Custom providers must supply the corresponding endpoint contract and processing integration; copying a route declaration alone is insufficient.

A raw-body signature integration test exercises the request pipeline, while a production connection still needs the provider’s real delivery setup. Preserve the raw body until verification, and keep inbound verification separate from the ES256 contract used for Wildo’s outbound customer webhooks.

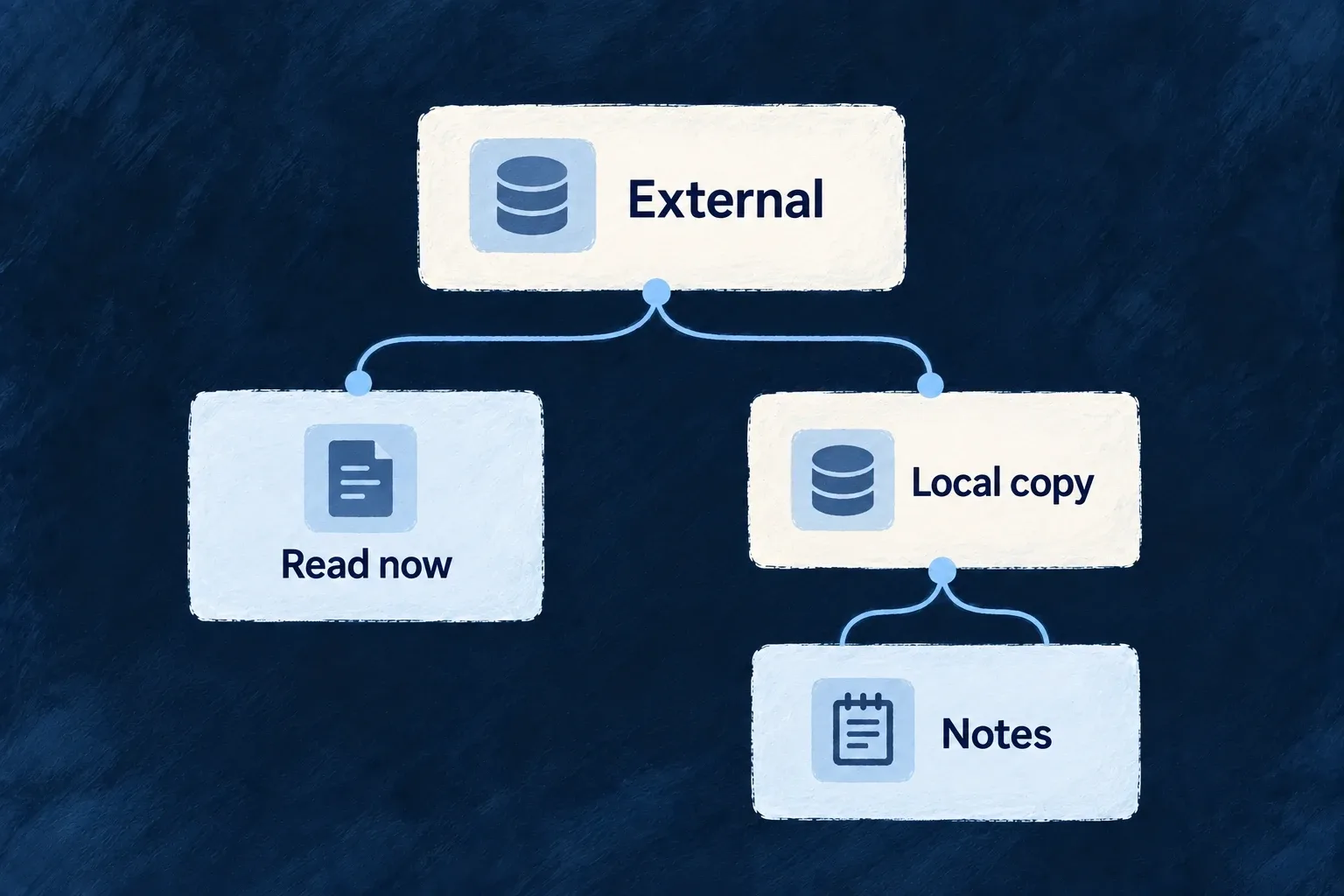

A virtual resource uses persistenceAdapter: HTTP_API with httpApiBinding. Its repository translates supported reads to the external system; ordinary writes are unavailable and it has no local row for extra fields or files. A pipeline declaration belongs to an ordinary local resource and populates that resource through the data-seeding engines.

Both use HttpApiReadClient for provider access, dialect framing and remote calls. A binding declares the provider reference, remote entity, key mapping, tenancy and erasure stance. Those are required semantic decisions, not optional labels.

This full pipeline block is selected from Wonder Todos’ external-customers.resources-config.ts; the surrounding resource factory and operation declarations are omitted:

  externalDataPipeline: {
    binding: {
      dialect: HttpApiTransportDialect.ODOO_JSONRPC,
      providerRef: 'odoo',
      entityRef: 'res.partner',
      keyFields: [{ localField: 'id', remoteField: 'id', codec: HttpApiKeyComponentCodec.INTEGER }],
      tenancy: {
        stance: HttpApiTenancyStance.SINGLE_TENANT_BINDING,
        justification: 'Wonder Todos serves one company, whose Odoo holds one client list; there is no per-tenant partition to push down.',
      },
      erasure: { stance: HttpApiErasureStance.NO_SUBJECT_DATA },
    },
    remoteKeyLocalField: 'odooPartnerRef',
    mapping: [
      { kind: ExternalDataMappingEntryKind.REMOTE_FIELD, remoteField: 'name', localField: 'name' },
      { kind: ExternalDataMappingEntryKind.REMOTE_FIELD, remoteField: 'email', localField: 'email' },
    ],
    // Only companies: Odoo's `res.partner` holds individuals too, and syncing them would make the
    // NO_SUBJECT_DATA erasure stance above false.
    sourceFilter: { is_company: true },
    population: ExternalDataDestinationPopulation.CLOSED,
    orphanPolicy: ExternalDataOrphanPolicy.REPORT,
    // Hourly. Client lists move at human speed, and every run is a round trip to someone else's
    // production system.
    scheduleCron: '0 * * * *',
  },

The closed population means the source supplies the records: this resource declares no caller create operation. Its local internalNote is editable, while imported fields exclude create/update input in the schema. The mapping owns only its declared fields. Register the schema, resource factory and relationships through the shared module, and configure the named provider’s backend access.

Treat synchronization as a population contract

remoteKeyLocalField holds a stable identity derived from the external binding. An extraction that reaches the source’s end selects sync reconciliation; a bounded pass selects upgrade reconciliation and persists its continuation. Reaching the end after resuming does not reconstruct the keys imported by earlier runs.

Keep REPORT for imports spanning several runs. The final resumed batch can classify earlier imported rows as absent because reconciliation receives that batch’s keys, not the accumulated population; reporting preserves those rows while you inspect the result. Automatic orphan deletion requires a complete population basis. A completed extraction is not a claim that every row passed transformation; inspect rejections and reconciliation results. Set the tenancy stance from the actual source partition, and do not use NO_SUBJECT_DATA for a source containing people’s information.

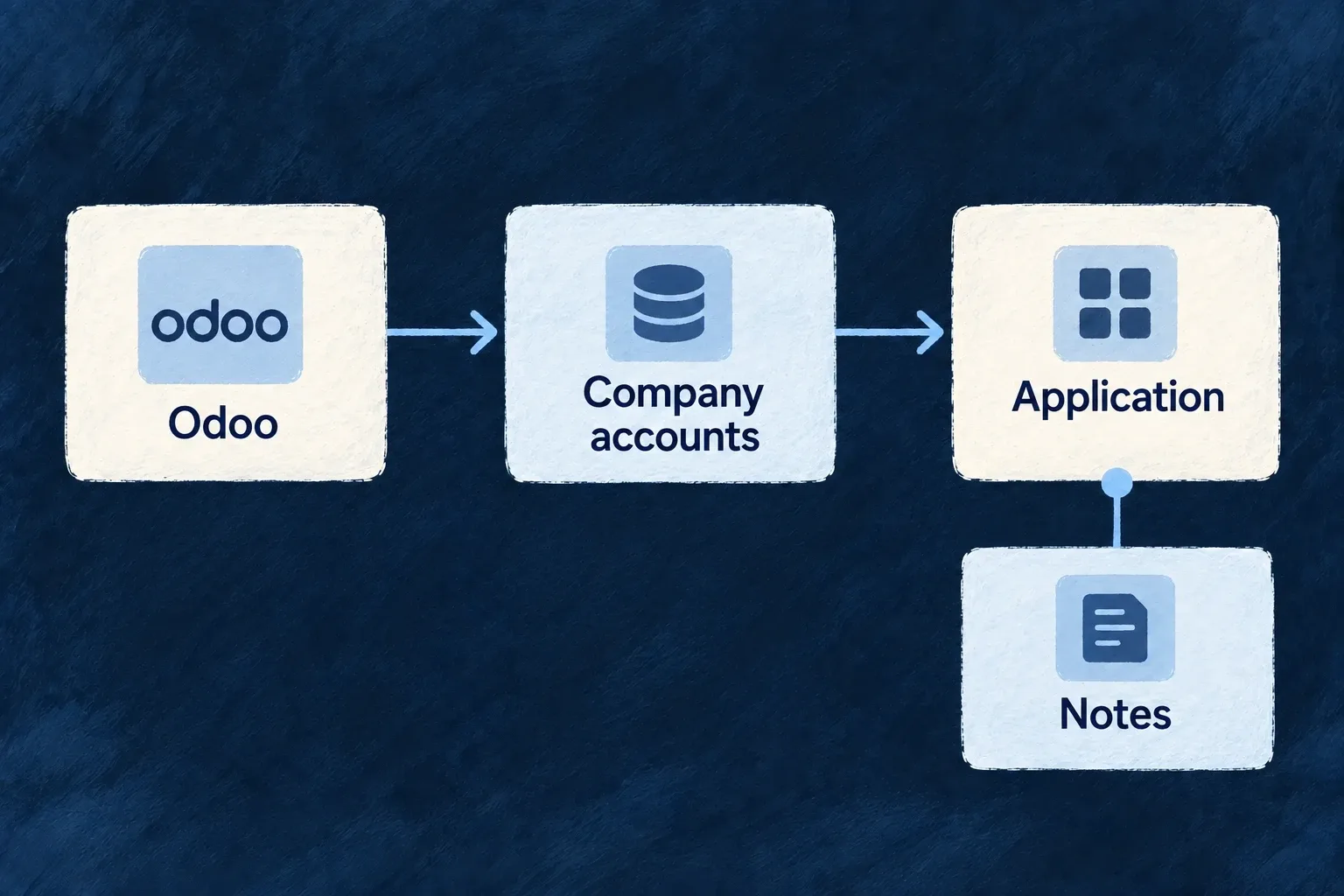

The backend provider named odoo resolves ODOO_BASE_URL, ODOO_DB, ODOO_LOGIN and the secret ODOO_API_KEY. These belong in deployment configuration, not in frontend code or a committed resource binding. The resource chooses HttpApiTransportDialect.ODOO_JSONRPC, providerRef: 'odoo' and its entityRef.

Declare odoo in the backend’s provider scope with protocols: ['REST_API']; it needs no engine capability for a binding that addresses it by reference. Synchronize the provider artifacts after configuration changes. The account must be able to read the requested Odoo model.

The following is the binding and mapping portion of Wonder Todos’ externalCustomers pipeline. Its resource schema, operations and registration surround this excerpt. The imports for these enums come from @wildo-ai/saas-models/external-data.

externalDataPipeline: {
  binding: {
    dialect: HttpApiTransportDialect.ODOO_JSONRPC,
    providerRef: 'odoo',
    entityRef: 'res.partner',
    keyFields: [{ localField: 'id', remoteField: 'id', codec: HttpApiKeyComponentCodec.INTEGER }],
    tenancy: {
      stance: HttpApiTenancyStance.SINGLE_TENANT_BINDING,
      justification: 'Wonder Todos serves one company, whose Odoo holds one client list; there is no per-tenant partition to push down.',
    },
    erasure: { stance: HttpApiErasureStance.NO_SUBJECT_DATA },
  },
  remoteKeyLocalField: 'odooPartnerRef',
  mapping: [
    { kind: ExternalDataMappingEntryKind.REMOTE_FIELD, remoteField: 'name', localField: 'name' },
    { kind: ExternalDataMappingEntryKind.REMOTE_FIELD, remoteField: 'email', localField: 'email' },
  ],
  sourceFilter: { is_company: true },
  population: ExternalDataDestinationPopulation.CLOSED,
  orphanPolicy: ExternalDataOrphanPolicy.REPORT,
  scheduleCron: '0 * * * *',
},

The integer remote key identifies the source record; odooPartnerRef retains that identity on the local destination. The mapping names the fields the import owns. The company filter supports this example’s stated data scope, and REPORT records missing source records without deleting local rows. These tenancy and erasure declarations describe this application; reassess them for a different population or customer account model.

For this dialect, the shared client authenticates the configured login to obtain an Odoo user ID, then puts database, user ID and key in the RPC arguments. It does not use the provider’s generic Bearer header for these calls. The compiler translates supported queries into model calls and domain filters; the pipeline owns scheduling and local reconciliation.

Define the data contract

The external data guide shows the complete company-account pipeline. Its res.partner binding uses integer id keys and a company-only source filter. The filter matters because the declared erasure stance describes company records, not individual contacts.

A virtual binding uses the same client but leaves records remote. Register the resource and provider protocol through their normal registries; naming a provider in providerRef does not install its package or provision the remote account. The configured Odoo account must have access to the requested model and operations.

Keep compatibility tied to the configured server

This connector targets the classic JSON-RPC contract implemented by its compiler and client. Protocol-simulator tests exercise authentication, extraction and changing source populations; they do not certify every hosted Odoo version or deployment. Verify the instance’s exposed API and permissions before depending on it for a business workflow. The provider is addressed by reference for these bindings rather than selected through an Odoo engine-capability slot.

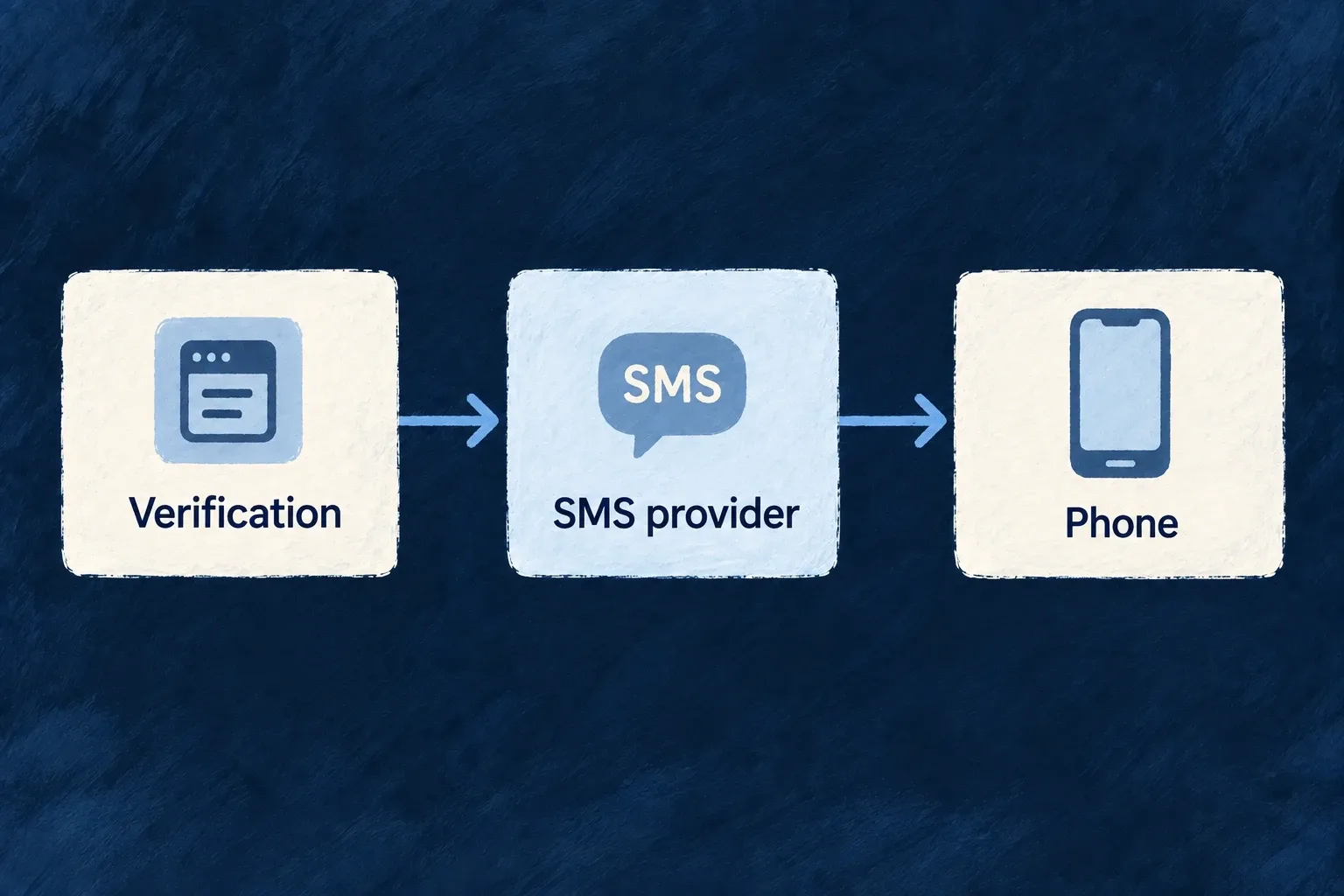

Enable EngineCapability.SMS, configure an enabled provider using SMS_PROVIDER, select its primary provider and supply the provider’s credential and sender configuration. Wonder Todos currently declares SMS disabled; that configuration is not a working send example.

For example, select the shipped Twilio backend provider in wildo.saas.config.ts. Import EngineCapability from @wildo-ai/saas-models. These are entries to merge into the existing configuration, preserving its other capabilities, providers and selections:

engineCapabilities: {
  [EngineCapability.SMS]: { enabled: true },
},
providers: {
  scopes: {
    backend: {
      providers: {
        twilio: {
          engineCapabilities: [EngineCapability.SMS],
          providerCapabilities: ['SMS'],
          protocols: ['SMS_PROVIDER'],
        },
      },
      selection: { [EngineCapability.SMS]: { primary: 'twilio', whenUnavailable: [] } },
    },
  },
},

Run wildo config sync to synchronize the provider artifacts. This is the backend contribution; a provider configured only on a frontend cannot send the authentication message. Keep credentials in the backend deployment environment, not this shared declaration.

The provider’s required TWILIO_CREDENTIALS secret accepts a JSON bundle shaped as {"accountId":"<account SID>","secret":"<auth token>"}. Both values come from the provider account. The engine resolves that secret, uses the account identifier in the send endpoint and constructs the authorization header. The separate fromNumber below belongs to backend application configuration and must identify the intended sender.

Set the sender, then handle the send result

The backend service is injected as SAAS_SERVICE_TYPES.SMSService. Its default sender comes from the application configuration path below; configuredSenderNumber is the number approved for your provider account. Import ExternalProvider_ExchangeProtocol_Kind from @wildo-ai/external-connectors-models. This is a configuration fragment, not a credential declaration.

providerConfigurations: {
  twilio: {
    [ExternalProvider_ExchangeProtocol_Kind.SMS_PROVIDER]: {
      fromNumber: configuredSenderNumber,
    },
  },
},

In the calling service, smsService is the injected SMS service, recipientPhone is an E.164 number and localizedMessage is the application’s translated message. This illustrative body shows the result boundary:

const result = await smsService.send(recipientPhone, localizedMessage);
if (!result.success) {
  throw new Error('The SMS provider did not accept the message');
}

const submission = {
  providerId: result.providerId,
  messageId: result.messageId,
};

The optional third argument overrides the configured sender for that call. success describes provider submission; neither that value nor the optional message identifier proves handset delivery. Preserve failure information in the application’s normal diagnostics without exposing message contents or credentials. Do not mark a verification challenge delivered simply because the promise resolved.

The existing SMS sign-in and phone-verification controllers follow this pattern: obtain a localized message, call send, inspect success, and reject the request on failure. Keep challenge generation, throttling and validation in those authentication flows rather than constructing a second authentication flow around this short send example.

Let the provider own its wire format

The runtime contract supplies the send endpoint, request-body builder and response parser. The engine resolves credentials, composes its authorization header, executes the bounded request and validates the parsed response against StandardSMS_SendResponseSchema. A provider’s accepted response is not proof of handset delivery.

Twilio is the shipped provider for this path. Its account-and-secret credential shape is parsed by the engine; secret values remain deployment material. The provider contract determines encoding and response interpretation rather than making every caller speak Twilio.

Keep the notification channels distinct

Authentication consumers invoke this service for codes and phone verification with their own throttling and continuation checks. The general notification dispatcher’s SMS branch still logs instead of invoking it. Use the existing transactional API for its supported workflows; do not advertise SMS delivery by adding CoreUserNotificationChannel.SMS to an operation declaration alone.

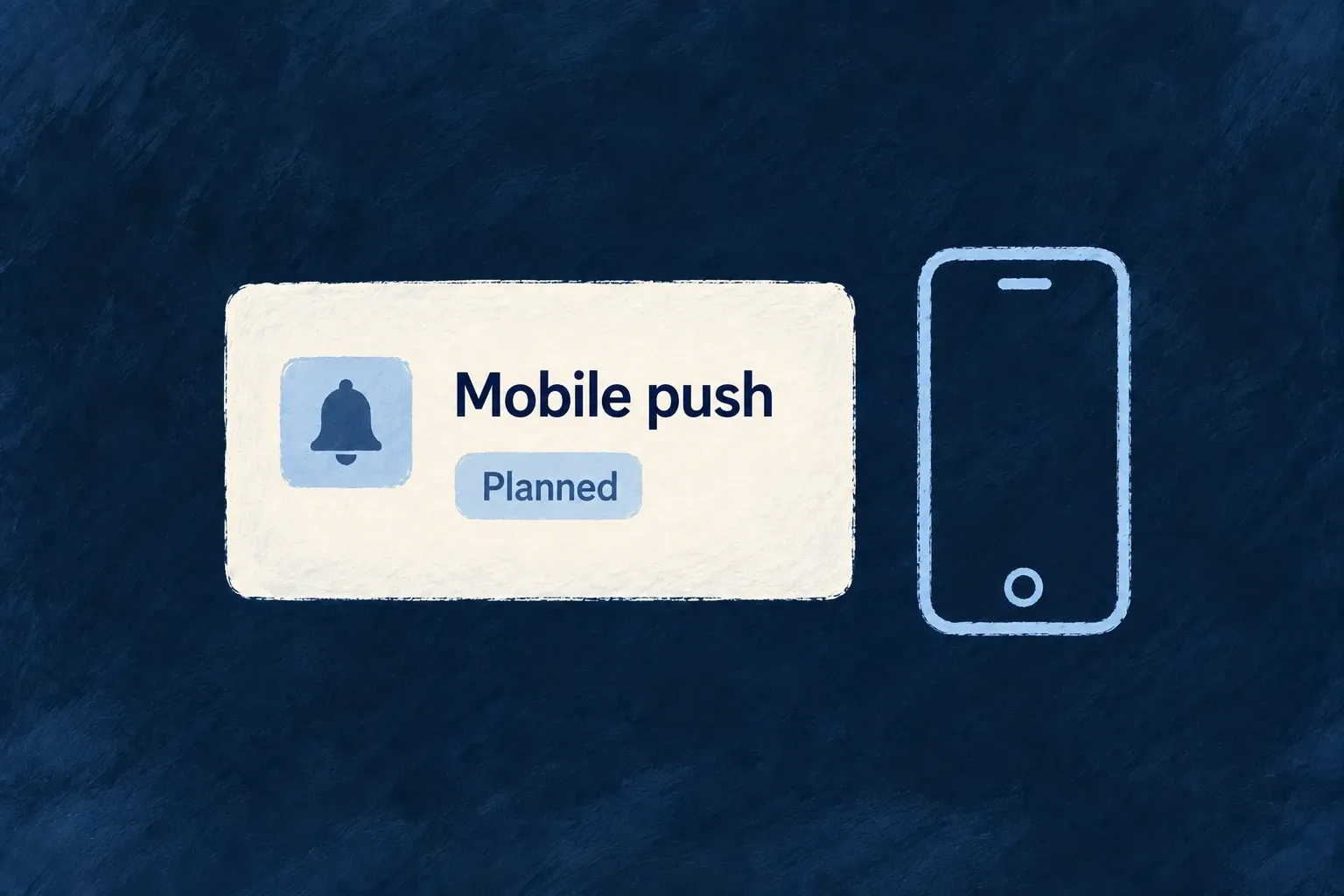

The model contains this channel variant in notifications.shared.schemas.ts:

export const UserNotificationDefinition_PushSchema = UserNotificationDefinition_BaseSchema.extend({
    channel: z.literal(CoreUserNotificationChannel.PUSH),
});

It accepts a declaration; it does not register a device, select a push provider or dispatch a device message. NotificationsDispatcherBackendService currently groups SMS and PUSH into a logging branch rather than a sending implementation.

Keep product behavior tied to an active sender

Do not use the presence of CoreUserNotificationChannel.PUSH as an availability check. A working push feature would also require device subscription lifecycle, a sender/provider contract and delivery handling. Those are implementation work, not configuration that an application author can switch on today.

Use in-app messages for an active application session, and the implemented notification channels appropriate to the product’s reach requirements. Transactional SMS is a separate service and does not imply general push support.
